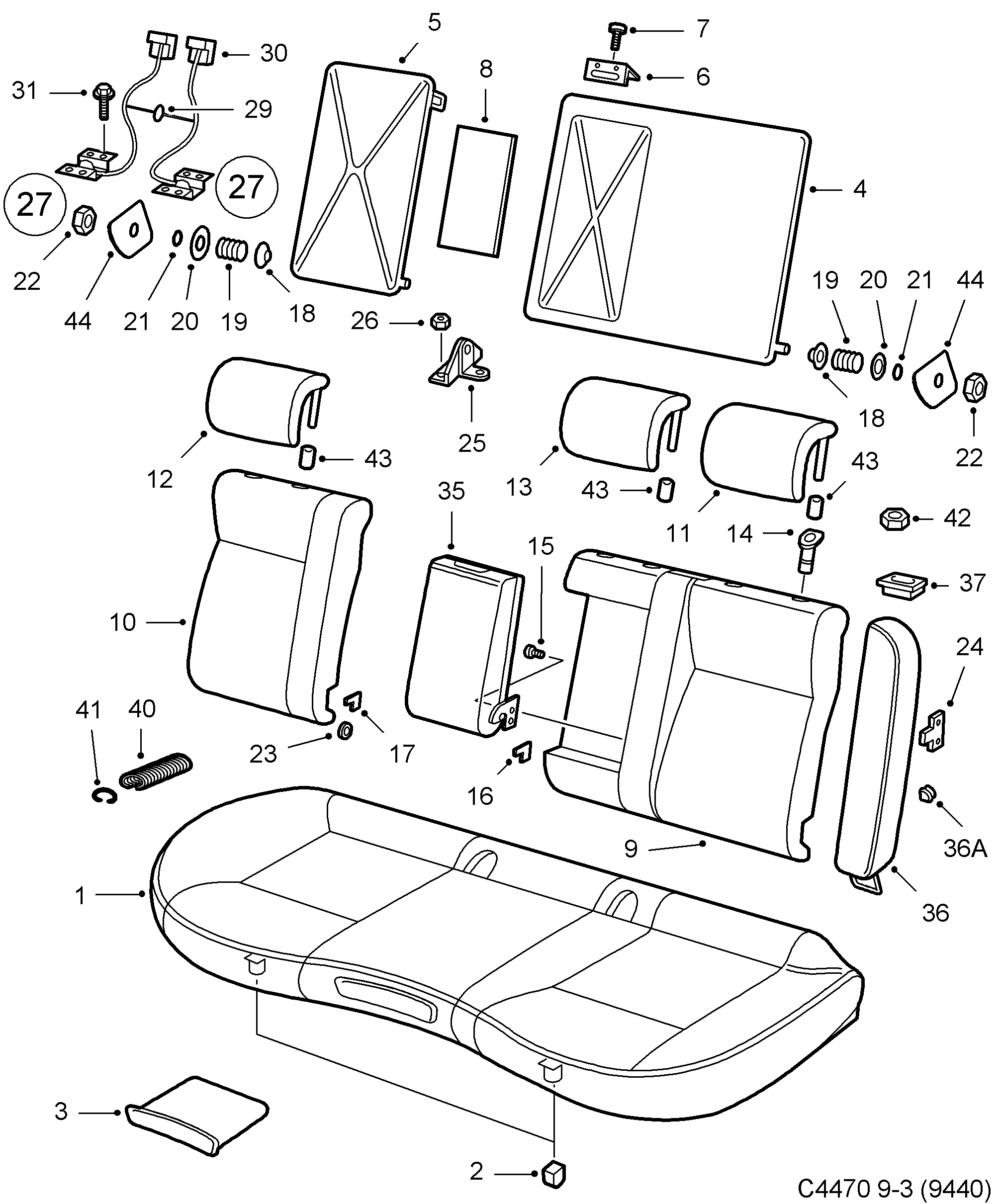

3200: Carrosserie, intérieur - Autre équipement intérieur - Banquette arrière
(2003 - 2011 | 4D)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 12794464 Coussin siège | 1 | |
| 1 | 12790486 12778639 Coussin siège Usage: 2003-2007 | Porte-gobelet | 1 | |
| 1 | 12778639 Coussin siège Usage: 2008-2011 | Porte-gobelet | 1 | |
| 2 | 24437789 Fixation | 2 | |
| 3 | 12790515 Support | 1 | |
| 4 | 12790488 Panneau arrière Usage: 2003-2010 | LH / Centre | 1 | |
| 4 | 12845841 Repose-rein Usage: 2011-2011 | LH / Centre | 1 | |
| 5 | 12790499 Panneau arrière Usage: 2003-2010 | RH | 1 | |
| 5 | 12845840 Repose-rein Usage: 2011-2011 | RH | 1 | |
| 6 | 24451677 Console | 1 | |
| 7 | 92152354 Vis Usage: M8 | 2 | |
| 8 | 24437820 24447546 Trappe Usage: 2003-2007 | 1 | |
| 8 | 12843753 Volet Usage: 2008-2011 | 1 | |
| 9 | 12790527 Dossier Usage: LH / Centre | 1 | |
| 10 | 12790551 Dossier Usage: RH | 1 | |
| 11 | 12790490 Appui-tête Usage: LH | 1 | |
| 12 | 12790501 Appui-tête Usage: RH | 1 | |
| 13 | 12790492 Appui-tête Usage: Centre | 1 | |
| 14 | 24453402 Douille | 6 | |
| 15 | 13107359 Vis | 4 | |
| 16 | 24454058 Serrure | 1 | |
| 17 | 24454059 Couverture | 1 | |
| 18 | 12797230 Couverture | 2 | |
| 19 | 13101492 Ressort | 2 | |
| 20 | 13122620 Rondelle Usage: 2003-2006 | 2 | |
| 20 | 12839621 Bague Usage: 2007-2007 | 2 | |
| 20 | 12839621 Bague Usage: 2008-2011 | LH | 1 | |
| 20 | 12783658 12839621 Bague Usage: 2008-2011 | RH | 1 | |
| 21 | 12799655 Entretoise | 1 | |
| 22 | 11900425 Ecrou | 2 | |
| 23 | 13124094 Couverture Usage: (13124093) | 1 | |
| 24 | 12791910 Clip | 2 | |
| 25 | 24443081 Articulation | 1 | |
| 26 | 11900430 Ecrou | 3 | |
| 27 | 12786974 12759380 Serrure Usage: 2003-2004 | LH | 1 | |
| 27 | 12759380 Serrure Usage: 2005-2011 | LH | 1 | |
| 27 | 12786975 12759381 Serrure Usage: 2003-2004 | RH | 1 | |
| 27 | 12759381 Serrure Usage: 2005-2011 | RH | 1 | |
| 29 | 92152209 92152339 Clip | 1 | |
| 30 | 12790569 Manivelle d'ouverture | 1 | |
| 31 | 92150996 Vis Usage: 2003-2006 | 6 | |
| 31 | 92152142 Vis Usage: 2007-2011 | 6 | |
| 35 | 12790495 12804557 Accoudoir Usage: -2004 | Gris | TRIM COLOUR K01 | 1 | |
| 35 | 12804557 Accoudoir Usage: 2004-2004 | Gris | TRIM COLOUR K01 | 1 | |
| 35 | 12755336 Accoudoir Usage: 2005-2011 | Gris | TRIM COLOUR K01 | 1 | |
| 35 | 12790497 12804559 Accoudoir Usage: -2004 | Gris | TRIM COLOUR K02 K03 K05 K09 | 1 | |
| 35 | 12804559 Accoudoir Usage: 2004-2004 | Gris | TRIM COLOUR K02 K03 K05 K09 | 1 | |
| 35 | 12804559 Accoudoir Usage: 2004-2004 | Gris | TRIM COLOUR K03 K05 K09 | 1 | |
| 35 | 12804279 Accoudoir Usage: 2004-2004 | Gris | TRIM COLOUR K03 K05 K09 | 1 | |
| 35 | 12804279 Accoudoir Usage: 2004-2004 | Gris | Trim colour K02 | 1 | |
| 35 | 12755338 Accoudoir Usage: 2005-2011 | Gris | TRIM COLOUR K02 K03 K05 K09 | 1 | |
| 35 | 12803565 12804562 Housse d'accoudoir Usage: -2004 | Noir | Trim colour K00 | 1 | |
| 35 | 12804562 Accoudoir Usage: 2004-2004 | Noir | Trim colour K00 | 1 | |
| 35 | 12755337 Accoudoir Usage: 2005-2011 | Noir | Trim colour K00 | 1 | |
| 35 | 12763779 Accoudoir Usage: 2005-2007 | Noir | Trim colour K33, K43 | 1 | |
| 35 | 12763779 Accoudoir Usage: 2005-2007 | Noir | B46 | 1 | |
| 35 | 12763779 Accoudoir Usage: 2008-2011 | Noir | Trim Colour B02, B05, B09, B10, B38, B43, B53 | 1 | |
| 35 | 12790494 Accoudoir Usage: -2004 | Beige | TRIM COLOUR L01 | 1 | |
| 35 | 12804556 Accoudoir Usage: 2004-2004 | Beige | TRIM COLOUR L01 | 1 | |
| 35 | 12755335 Accoudoir Usage: 2005-2011 | Beige | TRIM COLOUR L01 | 1 | |
| 35 | 12790496 12755339 Accoudoir Usage: -2004 | Beige | TRIM COLOUR L02 L03 L05 L09 | 1 | |
| 35 | 12804558 12755339 Accoudoir Usage: 2004-2004 | Beige | TRIM COLOUR L02 L03 L05 L09 | 1 | |
| 35 | 12804558 12755339 Accoudoir Usage: 2004-2004 | Beige | TRIM COLOUR L03 L05 L09 | 1 | |
| 35 | 12804278 Accoudoir Usage: 2004-2004 | Beige | TRIM COLOUR L03 L05 L09 | 1 | |
| 35 | 12804278 Accoudoir Usage: 2004-2004 | Beige | Trim colour L02 | 1 | |
| 35 | 12755339 Accoudoir Usage: 2005-2011 | Beige | TRIM COLOUR L02 L03 L05 L09 L53 | 1 | |
| 36 | 12770859 Dossier Usage: 2008-2011 | Noir Cuir | LH, B09 | 1 | |
| 36 | 12770860 Dossier Usage: 2008-2011 | Noir Cuir | RH, B09 | 1 | |
| 36 | 12779353 Dossier Usage: 2008-2011 | Noir | LH, B10 | 1 | |
| 36 | 12779354 Dossier Usage: 2008-2011 | Noir | RH, B10 | 1 | |
| 36 | 12770782 Dossier Usage: 2008-2008 | Noir Gris requin Cuir | LH B50-K50 | 1 | |
| 36 | 12770782 Dossier Usage: 2009-2011 | Noir Cuir / Cuir semi-aniline | LH B50 | 1 | |
| 36 | 12770783 Dossier Usage: 2008-2008 | Noir Gris requin Cuir | RH B50-K50 | 1 | |
| 36 | 12770783 Dossier Usage: 2009-2011 | Noir Cuir / Cuir semi-aniline | RH B50 | 1 | |
| 36 | 12770782 Dossier Usage: 2008-2008 | Noir cuir perforé | LH, B51 | 1 | |
| 36 | 12770783 Dossier Usage: 2008-2008 | Noir cuir perforé | RH, B51 | 1 | |
| 36 | 12791784 Coussin mousse plastique Usage: 2003-2004 | Gris | LH TRIM COLOUR K01 | 1 | |
| 36 | 12757597 Coussin mousse plastique Usage: 2005-2011 | Gris | LH TRIM COLOUR K01 K30 | 1 | |
| 36 | 12791786 Coussin mousse plastique Usage: 2003-2004 | Gris | RH TRIM COLOUR K01 | 1 | |
| 36 | 12757598 Coussin mousse plastique Usage: 2005-2011 | Gris | RH TRIM COLOUR K01 K30 | 1 | |
| 36 | 12791785 Coussin mousse plastique Usage: -2003 | Gris | LH TRIM COLOUR K02 K03 K05 | 1 | |
| 36 | 12803585 Coussin mousse plastique Usage: 2003- | Gris | LH TRIM COLOUR K02 K03 K05 | 1 | |
| 36 | 12791787 Coussin mousse plastique Usage: -2003 | Gris | RH TRIM COLOUR K02 K03 K05 | 1 | |
| 36 | 12803583 Coussin mousse plastique Usage: 2003- | Gris | RH TRIM COLOUR K02 K03 K05 | 1 | |
| 36 | 12796277 Coussin mousse plastique Usage: Gris | LH TRIM COLOUR K09 | 1 | |
| 36 | 12796275 Coussin mousse plastique Usage: Gris | RH TRIM COLOUR K09 | 1 | |
| 36 | 12803573 Coussin mousse plastique Usage: Noir | LH TRIM COLOUR K00 | 1 | |
| 36 | 12803572 Coussin mousse plastique Usage: Noir | RH TRIM COLOUR K00 | 1 | |
| 36 | 12763760 Coussin mousse plastique Usage: 2008-2011 | Noir | RH TRIM COLOUR B02, B05, B43 | 1 | |
| 36 | 12763759 Coussin mousse plastique Usage: Noir | LH TRIM COLOUR K33, K43 | 1 | |
| 36 | 12763760 Coussin mousse plastique Usage: Noir | RH TRIM COLOUR K33, K43 | 1 | |
| 36 | 12763759 Coussin mousse plastique Usage: 2008-2011 | Noir | LH TRIM COLOUR B02, B05, B43 | 1 | |
| 36 | 12785399 Coussin mousse plastique Usage: 2003-2004 | Beige | LH TRIM COLOUR L01 | 1 | |
| 36 | 12757595 Coussin mousse plastique Usage: 2005-2011 | Beige | LH TRIM COLOUR L01 L30 | 1 | |
| 36 | 12785401 Coussin mousse plastique Usage: 2003-2004 | Beige | RH TRIM COLOUR L01 | 1 | |
| 36 | 12757596 Coussin mousse plastique Usage: 2005-2011 | Beige | RH TRIM COLOUR L01 L30 | 1 | |
| 36 | 12785400 Coussin mousse plastique Usage: -2003 | Beige | LH TRIM COLOUR L02 L03 L05 | 1 | |
| 36 | 12803584 Coussin mousse plastique Usage: 2003- | Beige | LH TRIM COLOUR L02 L03 L05 L33 L38 L43 | 1 | |
| 36 | 12785402 Coussin mousse plastique Usage: -2003 | Beige | RH TRIM COLOUR L02 L03 L05 | 1 | |
| 36 | 12803582 Coussin mousse plastique Usage: 2003- | Beige | RH TRIM COLOUR L02 L03 L05 L33 L38 L43 | 1 | |
| 36 | 12796278 Coussin mousse plastique Usage: -2011 | Beige | LH TRIM COLOUR L09 | 1 | |
| 36 | 12796276 Coussin mousse plastique Usage: -2011 | Beige | RH TRIM COLOUR L09 | 1 | |
| 36 | 12773167 Dossier Usage: 2008-2011 | Beige Cuir / Cuir semi-aniline | LH L50 | 1 | |
| 36 | 12773172 Dossier Usage: 2008-2011 | Beige Cuir / Cuir semi-aniline | RH L50 | 1 | |
| 36 | 12772759 Dossier Usage: 2007-2007 | Anniversaire Noir/Gris | LH, B46 | 1 | |
| 36 | 12772760 Dossier Usage: 2007-2007 | Anniversaire Noir/Gris | RH, B46 | 1 | |
| 36A | 92152125 Pince serrage Usage: 2003-2011 | 2 | |
| 37 | 12790567 Passe-câble Usage: LH | 1 | |
| 37 | 12790568 Passe-câble Usage: RH | 1 | |
| 40 | 12800399 Kit montage | 1 | |
| 41 | 12803044 12800399 Crochet Usage: N'est pas une pièce de rechange distincte. | 44 | |
| 42 | 92153046 Ecrou Usage: M10 | 1 | |
| 43 | 12804555 Entretoise | X | |
| 44 | 12799656 Plaque Usage: Charnière Extérieur | 2 |
