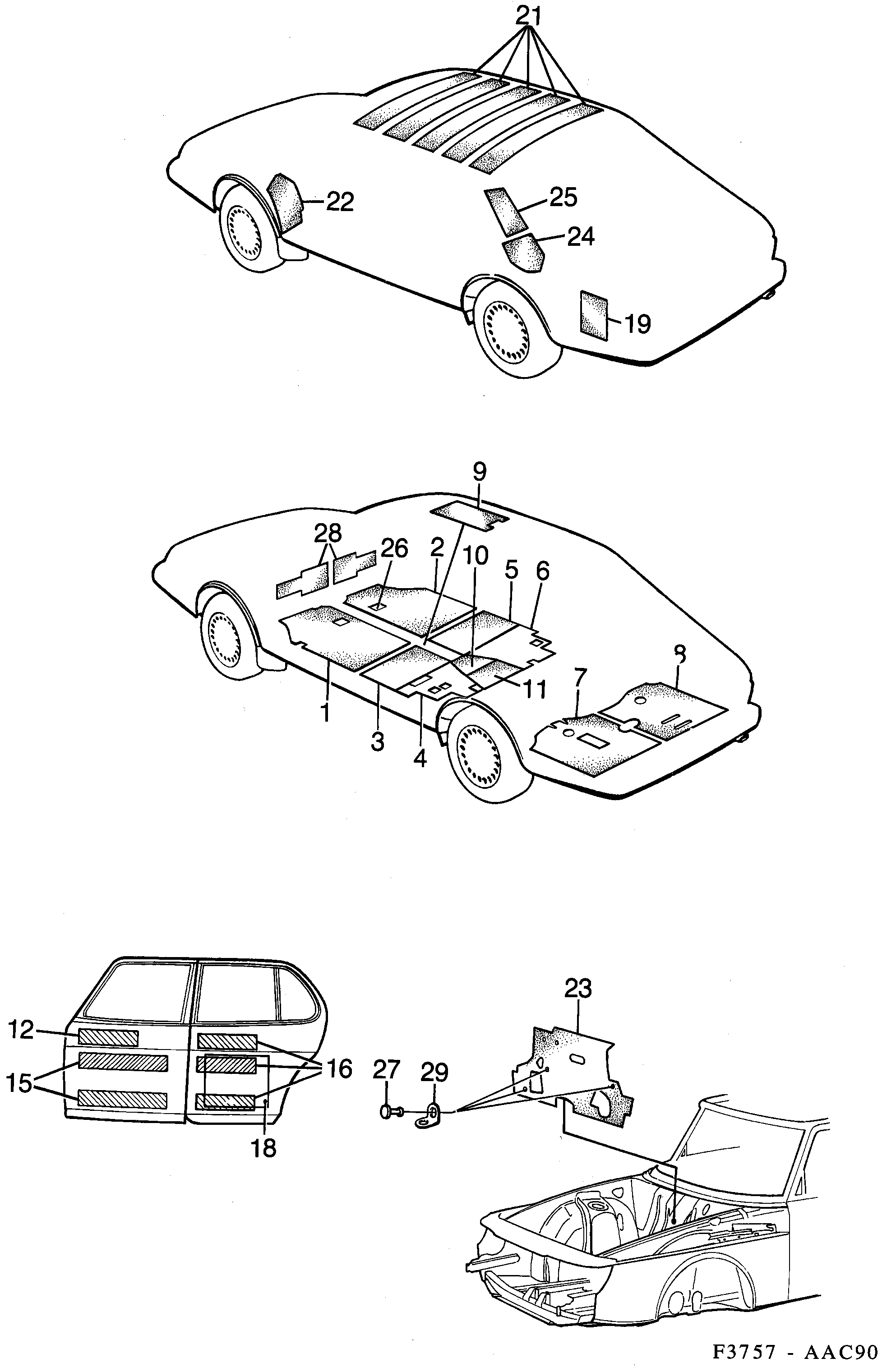

320: Carrosserie, intérieur - Garnitures - Isolation acoustique
(1990 - 1993)
Concerne aussi CV 1994
| Pos. | Réf. | Qté | |
|---|---|---|---|
Tapis isolant Usage: Tapis d'amortissement vendus uniquement sous deux numéros d'article différents. Voir PI 08-12-1999 | |||
| 1 | 9438193 4265906 Tapis isolant Usage: 1990-1991 | LH | 1 | |
| 1 | 4265906 Tapis isolant Usage: 1992-1993 | LH | 1 | |
| 2 | 9438201 Tapis isolant Usage: RH | 1 | |
| 3 | 9540782 4265468 Tapis isolant Usage: 1990-1990 | LH | 1 | |
| 3 | 4265468 Tapis isolant Usage: 1991-1993 | LH | 1 | |
| 4 | 4266615 Tapis isolant Usage: 1991-1993 | LH | 1 | |
| 5 | 4048351 4265468 Tapis isolant Usage: 1990-1990 | RH | 1 | |
| 5 | 4265468 Tapis isolant Usage: 1991-1993 | RH | 1 | |
| 6 | 4048344 Tapis isolant Usage: RH | 1 | |
| 7 | 9681339 Tapis isolant Usage: 1990-1990 | LH | 1 | |
| 7 | 4155891 Tapis isolant Usage: 1991-1993 | LH | 1 | |
| 8 | 9681347 Tapis isolant Usage: 1990-1990 | RH | 1 | |
| 8 | 4170049 Tapis isolant Usage: 1991-1993 | RH | 1 | |
| 9 | 9540774 Pare-chaleur Usage: Avec catalyseur. | 1 | |
| 10 | 8490625 Tapis isolant | 1 | |
| 11 | 8490641 Tapis isolant | 1 | |
| 12 | 4052817 Tapis isolant Usage: 1990-1991 | 2 | |
| 15 | 4055539 Tapis isolant Usage: 1990-1991 | 4 | |
| 15 | 9544834 Tapis isolant Usage: 1992-1993 | 6 | |
| 16 | 4052817 Tapis isolant Usage: 1990-1991 | 6 | |
| 16 | 9544834 Tapis isolant Usage: 1992-1993 | 6 | |
| 18 | 8438400 Carton Usage: 1990-1990 | 2 | |
| 18 | 9544834 Tapis isolant Usage: 1991-1993 | 2 | |
| 19 | 8461063 Carton | 2 | |
| 21 | 9757691 Tapis isolant | 5 | |
| 21 | 9757691 Tapis isolant Usage: SR | 1 | |
| 22 | 9425653 Isolant Usage: 1990-1990 | LH | 1 | |
| 22 | 9425661 Isolant Usage: 1990-1990 | RH | 1 | |
| 22 | 4053773 Tapis isolant Usage: 1991-1993 | 2 | |
| 23 | 4045712 Isolant | 1 | |
| 24 | 8428211 Isolant Usage: LH | 1 | |
| 24 | 8428237 Isolant Usage: RH | 1 | |
| 25 | 8428203 Isolant Usage: LH | 1 | |
| 25 | 8428229 Isolant Usage: RH | 1 | |
| 26 | 8490575 Tapis isolant | 2 | |
| 27 | 9443920 Rivet | 7 | |
| 28 | 9450974 Plastique Usage: I | 2 | |
| 29 | 8940652 Etrier | 2 |
