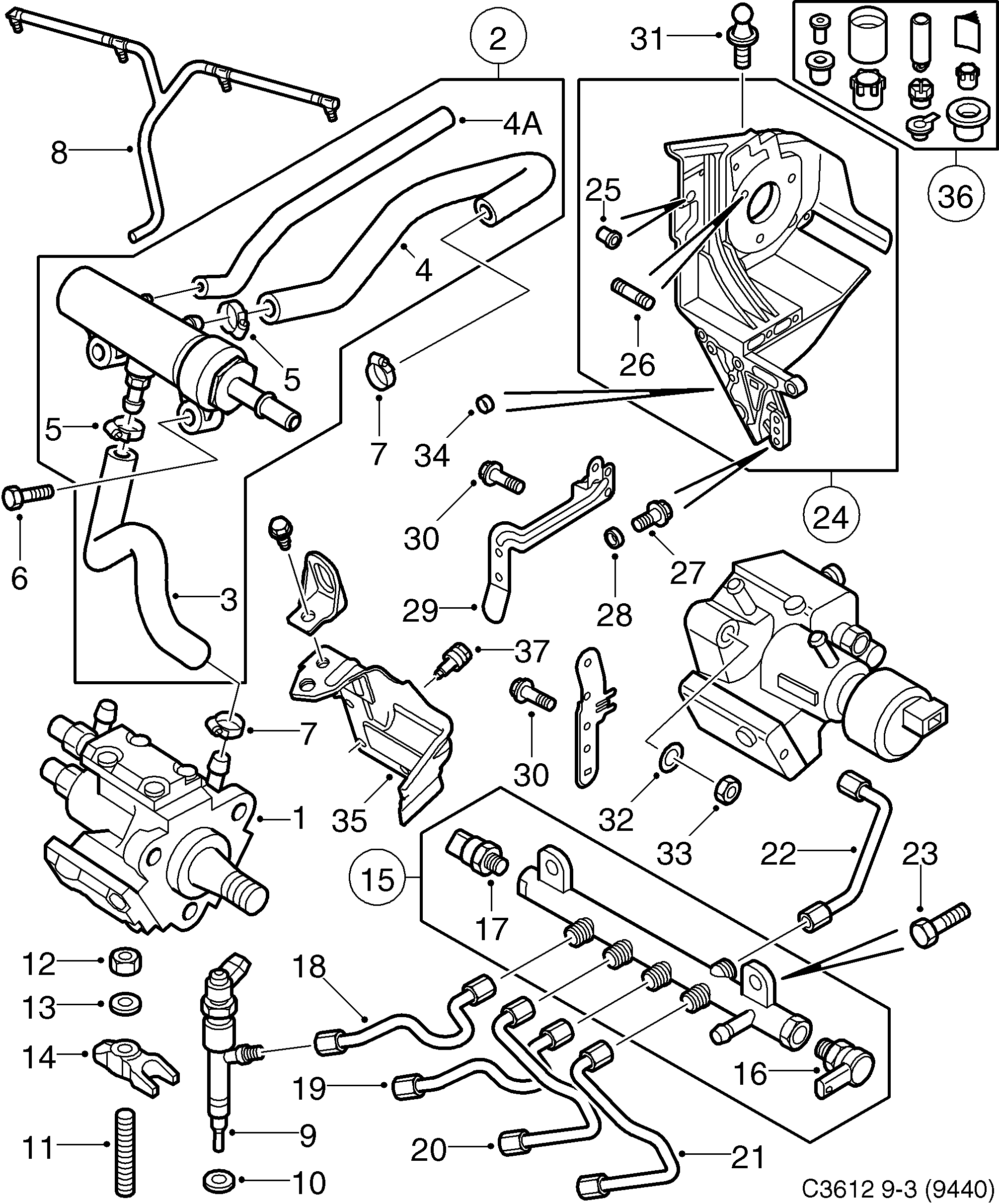

3575: Moteur - Système de carburant - Pompe injection - Soupape d'injection
(2005 - 2010 | 4-CYL,DIESEL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 93188709 93190244 Pompe injection Usage: -2004, LHD | 1 | |
| 1 | 93188709 93190244 Pompe injection Usage: -2001, LHD | 1 | |
| 1 | 93190244 Pompe injection Usage: 2001-, LHD | Egalement disponible en unité de rechange. | 1 | |
| 1 | 93191709 Pompe injection Usage: LHD | 1 | |
| 1 | 93188710 93190245 Pompe injection Usage: -2004, RHD | 1 | |
| 1 | 93188710 93190245 Pompe injection Usage: -2001, RHD | 1 | |
| 1 | 93190245 Pompe injection Usage: 2001-, RHD | Egalement disponible en unité de rechange. | 1 | |
| 2 | 55204031 Réservoir Usage: -2004 | 1 | |
| 2 | 55204031 Réservoir Usage: -2001 | 1 | |
| 2 | 55205605 Réservoir Usage: 2001- | 1 | |
| 3 | 93180740 93184685 Flexible Usage: 2005-2005 | 1 | |
| 3 | 93184685 Flexible Usage: 2006-2008 | 1 | |
| 4 | 93180741 Flexible Usage: -2001 | 1 | |
| 4A | 55196335 55573521 Flexible Usage: 2005-2005 | 1 | |
| 4A | 93167079 55573521 Flexible Usage: 2006-2008 | 1 | |
| 4A | 55573521 Flexible Usage: 2009-2010 | 1 | |
| 5 | 93177692 Collier serrage | 2 | |
| 6 | 93178984 Vis Usage: 2005-2007 | M6X35 | 2 | |
| 6 | 12855336 Vis Usage: 2008-2010 | M6X30 | 2 | |
| 7 | 93177692 Collier serrage | 2 | |
| 8 | 93179051 Conduite carburant Usage: -2005 | 1 | |
| 8 | 55566677 Flexible Usage: 2005-2010 | 1 | |
| 9 | 93179047 93184794 Injecteur Usage: -2005 | 4 | |
| 9 | 93184794 Injecteur Usage: 2005-2007 | Egalement disponible en unité de rechange. | 4 | |
| 9 | 55198218 Injecteur Usage: 2007- | Egalement disponible en unité de rechange. | 4 | |
| 10 | 93178683 Joint | 4 | |
| 11 | 93179050 Goujon Usage: M8X16-57 | 4 | |
| 12 | 93181871 93177333 Ecrou | 4 | |
| 13 | 93179049 Rondelle | 4 | |
| 14 | 93179048 Fixation | 4 | |
| 15 | 93179041 93192283 Tuyau Usage: 2005-2005 | 1 | |
| 15 | 93185539 93192283 Distributeur d'essence Usage: 2006-2007 | 1 | |
| 15 | 55197372 93192482 Tuyau distribution Usage: 2007-2007 | 1 | |
| 15 | 93192482 Tuyau distribution Usage: 2008-2010 | 1 | |
| 16 | 93181654 Régulateur de pression Usage: -2007 | 1 | |
| 17 | 93177365 93185626 Capteur Usage: 2005-2005 | 1 | |
| 17 | 93185626 Elément sensible Usage: 2006-2010 | 1 | |
| 18 | 93179045 Conduite carburant Usage: 2005-2007 | CYL.1 | 1 | |
| 18 | 93191392 Conduite carburant Usage: 2008-2010 | CYL.1 | 1 | |
| 19 | 93179044 93191391 Conduite carburant Usage: 2005-2007 | CYL.2 | 1 | |
| 19 | 93191391 Conduite carburant Usage: 2008-2010 | CYL.2 | 1 | |
| 20 | 93179043 93191393 Conduite carburant Usage: 2005-2007 | CYL.3 | 1 | |
| 20 | 93191393 Conduite carburant Usage: 2008-2010 | CYL.3 | 1 | |
| 21 | 93179042 93191390 Conduite carburant Usage: 2005-2007 | CYL.4 | 1 | |
| 21 | 93191390 Conduite carburant Usage: 2008-2010 | CYL.4 | 1 | |
| 22 | 93179046 55215517 Tuyau d'injection Usage: 2005-2007 | 1 | |
| 22 | 55215517 Tuyau Usage: 2008-2010 | 1 | |
| 23 | 93178829 Vis Usage: M8X25 | 2 | |
| 24 | 93182443 55196096 Fixation Usage: 2005-2005, RHD | 1 | |
| 24 | 55196096 Fixation Usage: 2006-2008, RHD | 1 | |
| 25 | 93178844 Bague Usage: 2005-2006 | 1 | |
| 25 | 93190054 Ecrou douille Usage: 2007-2010 | 1 | |
| 26 | 93182444 Goujon Usage: M8X12 | 3 | |
| 27 | 93178847 Vis Usage: M8X35 | 3 | |
| 27 | 12855322 Vis à tête hexagonale Usage: M8X50 | 1 | |
| 27 | 93182452 Vis Usage: M8X110 | 2 | |
| 28 | 93179080 Rondelle | 1 | |
| 29 | 93183254 93184681 Fixation Usage: câblage | 1 | |
| 30 | 93177489 Vis Usage: M6X14 | X | |
| 31 | 12992539 55560110 Boulon articulation Usage: 2005-2005 | 1 | |
| 31 | 55560110 Boulon articulation Usage: 2006-2010 | 1 | |
| 32 | 93178879 Rondelle | 3 | |
| 33 | 93178880 Ecrou | 3 | |
| 34 | 93178469 Obturateur à vis | 1 | |
| 35 | 55559691 Plaque protection Usage: -2007 | 1 | |
| 35 | 55559691 Plaque protection Usage: -2007 | 1 | |
| 35 | 55565846 Manchon protection Usage: 2007- | 1 | |
| 35 | 55565846 Manchon protection Usage: 2007- | 1 | |
| 36 | 93161370 Jeu de pièces Usage: 2008-2010 | Kit de complément, raccordement de carburant | 1 | |
| 37 | 92152043 Vis Usage: M6 x 16 | 3 |
