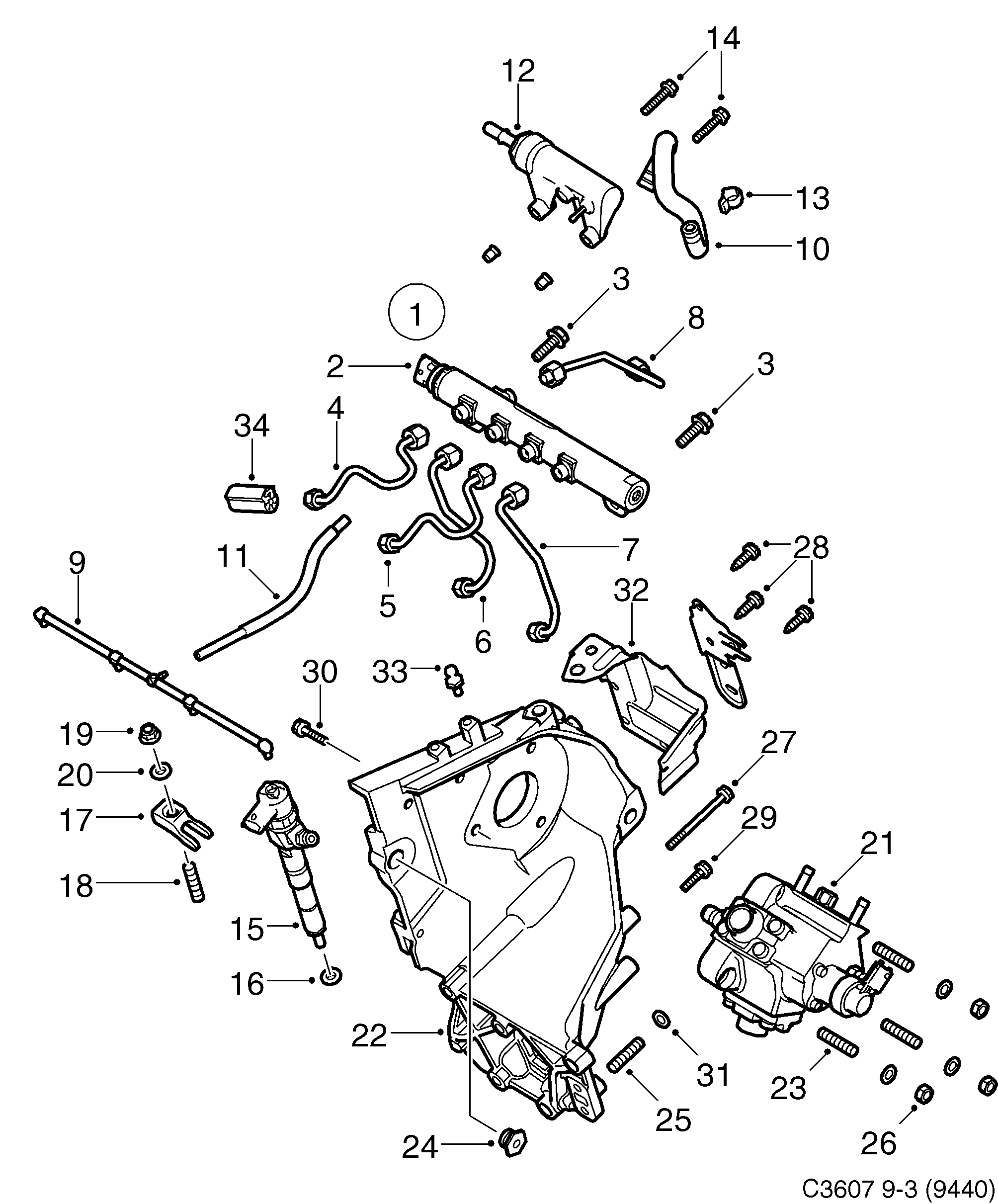

3576: Moteur - Système de carburant - Pompe injection - Soupape d'injection
(2008 - 2011 | 4-CYL,DIESEL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 93166897 Tuyau distribution Usage: 2008-2011 | 1 | |
| 2 | 93185626 Elément sensible Usage: 2008-2011 | 1 | |
| 3 | 93191368 Vis Usage: 2008-2011 | M8X25 | 2 | |
| 4 | 93191392 Conduite carburant Usage: 2008-2011 | CYL.1 | 1 | |
| 5 | 93191393 Conduite carburant Usage: 2008-2011 | CYL.2 | 1 | |
| 6 | 93191391 Conduite carburant Usage: 2008-2011 | CYL.3 | 1 | |
| 7 | 93191390 Conduite carburant Usage: 2008-2011 | CYL.4 | 1 | |
| 8 | 93191394 Conduite carburant Usage: 2008-2011 | 1 | |
| 9 | 93186425 Tuyau Usage: 2008-2011 | 1 | |
| 10 | 93191385 Flexible Usage: 2008-2011 | 1 | |
| 11 | 93191386 Flexible Usage: 2008-2008 | 1 | |
| 11 | 93167079 55573521 Flexible Usage: 2009-2011 | 1 | |
| 11 | 55573521 Flexible Usage: 2009-2011 | 1 | |
| 12 | 93191384 Réservoir Usage: 2008-2008 | 1 | |
| 12 | 93167078 Réservoir Usage: 2009-2011 | 1 | |
| 13 | 93177692 Collier serrage Usage: 2008-2011 | 2 | |
| 14 | 12855336 Vis Usage: 2008-2011 | M6X30 | 2 | |
| 15 | 93191395 55221024 Injecteur Usage: 2008-2011 | 4 | |
| 16 | 93178683 Joint Usage: 2008-2011 | 4 | |
| 17 | 93191396 Porteur Usage: 2008-2011 | 4 | |
| 18 | 93179050 Goujon Usage: 2008-2011 | M8X16-57 | 4 | |
| 19 | 93177333 Ecrou Usage: 2008-2011 | 4 | |
| 20 | 93179049 Rondelle Usage: 2008-2011 | 4 | |
| 21 | 93191383 Pompe injection Usage: 2008-2011 | 1 | |
| 22 | 93191401 Fixation Usage: 2008-2011 | 1 | |
| 23 | 93191402 Goujon Usage: 2008-2011 | M8 X 11 | 3 | |
| 24 | 93190054 Ecrou douille Usage: 2008-2011 | 1 | |
| 25 | 93178469 Obturateur à vis Usage: 2008-2011 | 4 | |
| 26 | 93178880 Ecrou Usage: 2008-2011 | 3 | |
| 27 | 93182452 Vis Usage: 2008-2011 | M8X110 | 2 | |
| 28 | 92152043 Vis Usage: 2008-2011 | M6 x 16 | 3 | |
| 29 | 93178847 Vis Usage: 2008-2011 | M8X35 | 3 | |
| 29 | 93179333 Vis Usage: 2008-2011 | M6X14 | X | |
| 30 | 93178981 Vis Usage: 2008-2011 | M10X40 | 1 | |
| 31 | 93179080 Rondelle Usage: 2008-2011 | 1 | |
| 32 | 55565846 Manchon protection Usage: 2008-2011 | 1 | |
| 33 | 55560110 Boulon articulation Usage: 2008-2011 | 1 | |
| 34 | 55214403 Amortisseur Usage: 2008-2011 | 4 |
