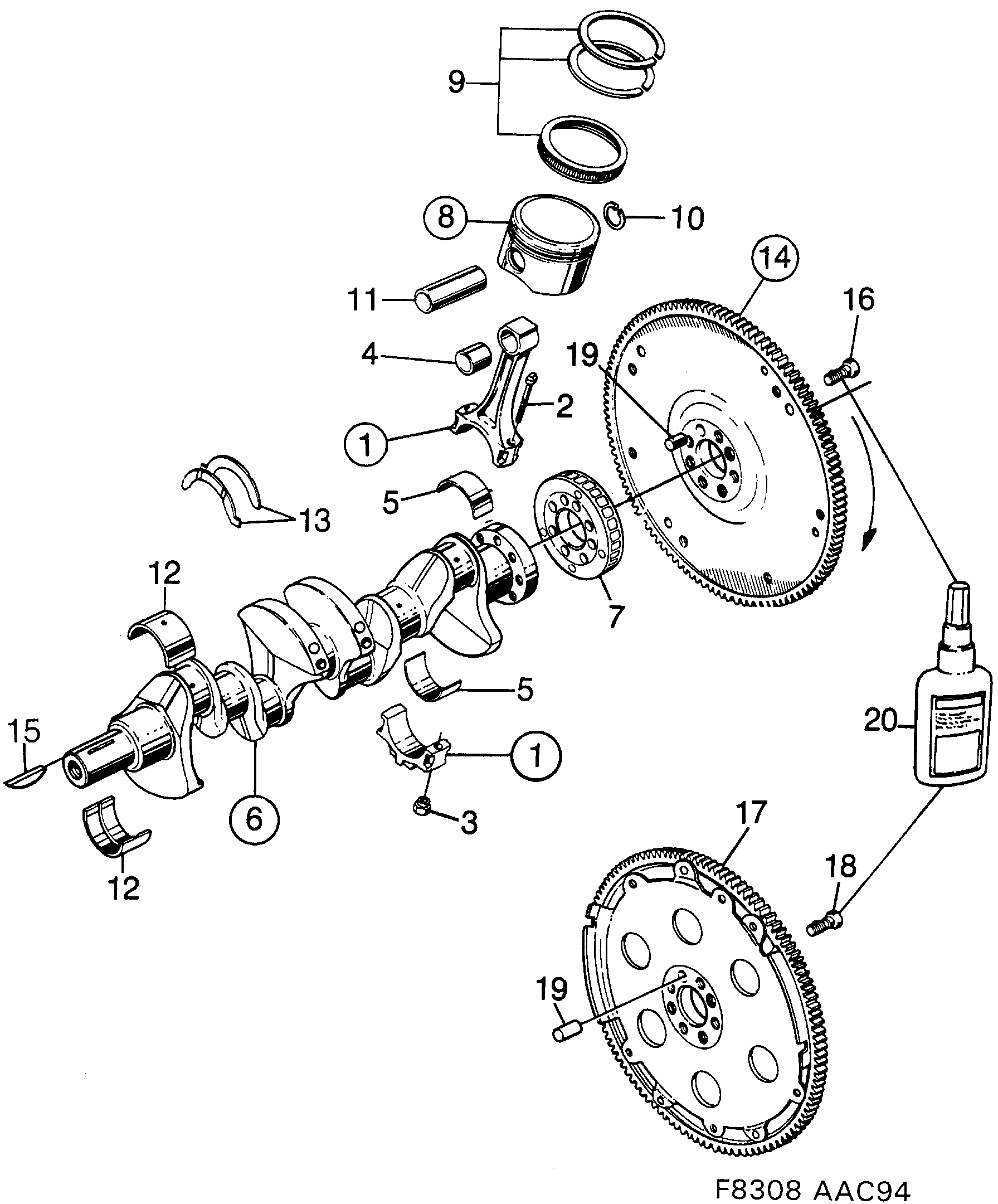

360: Moteur - Corps de moteur - Vilebrequin - Piston
(1994 - 1998 | 4-CYL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 5959028 Jeu bielles Usage: (74 81 740) | 1 | |
| 2 | 7480643 Vis | 8 | |
| 3 | 7480684 Ecrou | 8 | |
| 4 | 8347676 Bague | 4 | |
| 5 | 9145459 55557370 Coussinet de bielle Usage: STD | 8 | |
| 5 | 9145467 30551894 Coussinet de bielle Usage: Sous-dimension | 0,25 MM | 8 | |
| 5 | 9145475 30551895 Coussinet de bielle Usage: Sous-dimension | 0,50 MM | 8 | |
| 6 | 9139403 Vilebrequin | 1 | |
| 6 | 9139460 Vilebrequin Usage: B234I | 1 | |
| 7 | Disque diaphragme | 1 | |
| 8 | 9149154 Piston Usage: B204I, B206I | CLASS AB | 4 | |
| 8 | 9149162 Piston Usage: B204I, B206I | CLASS B | 4 | |
| 8 | 9149170 Piston Usage: B204I, B206I | CLASS C | 4 | |
| 8 | 9149188 Piston Usage: B204I, B206I | Surdimension | 0,50 MM | 4 | |
| 8 | 9149196 Piston Usage: B204I, B206I | Surdimension | 1,0 MM | 4 | |
| 8 | 9149360 Piston Usage: B234I | CLASS AB | 4 | |
| 8 | 9149378 Piston Usage: B234I | CLASS B | 4 | |
| 8 | 9149386 Piston Usage: B234I | CLASS C | 4 | |
| 8 | 9149394 Piston Usage: B234I | Surdimension | 0,50 MM | 4 | |
| 8 | 9149402 Piston Usage: B234I | Surdimension | 1,0 MM | 4 | |
| 8 | 9149295 Piston Usage: B204L | CLASS AB | 4 | |
| 8 | 9149303 Piston Usage: B204L | CLASS B | 4 | |
| 8 | 9149311 30553521 Piston Usage: B204L | CLASS C | 4 | |
| 8 | 9149329 Piston Usage: B204L | Surdimension | 0,50 MM | 4 | |
| 8 | 9149337 Piston Usage: B204L | Surdimension | 1,0 MM | 4 | |
| 9 | 9149105 Jeu segments piston Usage: I | STD | 4 | |
| 9 | 9149113 Jeu segments piston Usage: I | Surdimension | 0,5MM | 4 | |
| 9 | 9149121 Jeu segments piston Usage: I | Surdimension | 1,0 MM | 4 | |
| 9 | 9167776 9149105 Jeu segments piston Usage: -1994 | TURBO | STD | 4 | |
| 9 | 9167891 9149113 Jeu segments piston Usage: -1994 | TURBO | Surdimension | 0,5MM | 4 | |
| 9 | 9167909 Jeu segments piston Usage: -1994 | TURBO | Surdimension | 1,0 MM | 4 | |
| 9 | 9149105 Jeu segments piston Usage: 1994- | TURBO | STD | 4 | |
| 9 | 9149113 Jeu segments piston Usage: 1994- | TURBO | Surdimension | 0,5MM | 4 | |
| 9 | 9149121 Jeu segments piston Usage: 1994- | TURBO | Surdimension | 1,0 MM | 4 | |
| 10 | 8859514 55557265 Anneau verrouillage Usage: 1994-1997 | 8 | |
| 10 | 9185794 55557265 Anneau verrouillage Usage: 1998-1998 | 8 | |
| 11 | 7568934 Axe piston Usage: I | L=60MM | 4 | |
| 11 | 93166808 Axe piston Usage: TURBO | L=68MM (75 68 942) | 4 | |
| 12 | 9145418 55557369 Palier vilebrequin Usage: STD | 10 | |
| 12 | 9145426 30551891 Palier vilebrequin Usage: Sous-dimension | 0,25 MM | 10 | |
| 12 | 9145434 30551892 Palier vilebrequin Usage: Sous-dimension | 0,50 MM | 10 | |
| 13 | 7588783 Rondelle butée | 2 | |
| 14 | 9143454 9179136 Volant Usage: -1996 | 1 | |
| 14 | 9179136 Volant Usage: 1996- | 1 | |
| 15 | Clavette | ||
| 16 | 9131160 30551806 Vis | 8 | |
| 17 | 9167917 Flasque entraînement | 1 | |
| 18 | 9139940 Vis | 8 | |
| 19 | 9145590 30558708 Goupille Usage: -1996 | 1 | |
| 20 | 7496292 Le freinage des filetages Usage: fort rouge | 50 ML | X |
