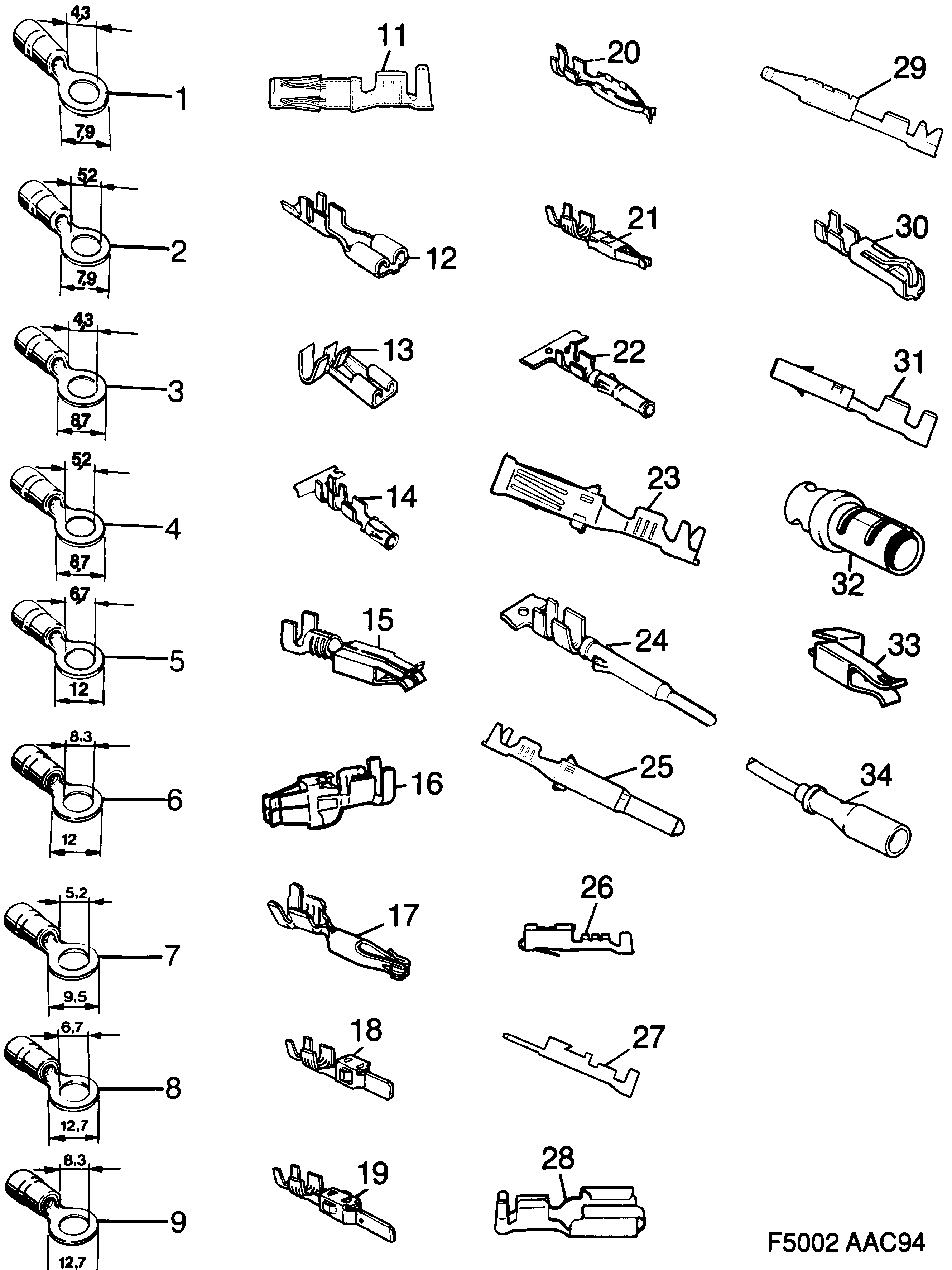

4380: Système électrique, boîte de connexion - Connecteur, etc - Cosse câble
(1994)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7155211 Cosse Usage: 40/253 152 003 | X | |
| 2 | 7155229 Cosse Usage: 40/253 153 001 | X | |
| 3 | 7155237 Cosse Usage: 40/253 172 001 | X | |
| 4 | 7117880 Cosse Usage: 40/253 173 009 | X | |
| 5 | 7829617 Cosse Usage: 40/253 174 007 | X | |
| 6 | 7959349 Cosse | X | |
| 7 | 7155658 Cosse Usage: 40/253 210 009 | X | |
| 8 | 7829666 Cosse Usage: 40/253 211 007 | X | |
| 9 | 7829674 Cosse Usage: 40/253 212 005 | X | |
| 9 | 7977556 Cosse | X | |
| 11 | 4411278 Cosse Usage: CONTACT HOUSING 4411260 | X | |
| 12 | 4409801 Cosse Usage: HORN THEFT ALARM OIL PRESSURE,FOR CONTACT HOUSING 8516916 | X | |
| 12 | 4464442 12798482 Cosse Usage: CONTACT HOUSING 4201315,4203733,4224457 4411286,8503229 | X | |
| 12 | 8522575 Câblage Usage: CONTACT HOUSING 8378630 | X | |
| 12 | 8504797 Cosse Usage: CONTACT HOUSING 8533184 | X | |
| 12 | 8582439 Cosse Usage: CONTACT HOUSING 8533184 | X | |
| 13 | 8522526 Cosse Usage: LIGHT IGNITION CONTACT HOUSING 8521692 | X | |
| 14 | 8582090 Cosse Usage: SWITCH HAND BRAKE | X | |
| 15 | 9120791 30520557 Cosse Usage: EL-DISTRIBUTION BOX CONTACT HOUSING 4060893,4173803,4203717 4224317,9124090,9124157 | X | |
| 16 | 9120957 12789796 Cosse Usage: EL-DISTRIBUTION BOX CONTACT HOUSING 4113205,4114005,4176616 4201323,4203618,4222311 4224598,4466462,9123381 9123399,9565045 | X | |
| 16 | 4354171 12970428 Cosse Usage: CONTACT HOSING 4113403,4113411 | X | |
| 16 | 4061586 Cosse Usage: CONTACT HOUSING 4113205,4113601,4113809 4114005,4178414,4432316 4432324,4432357 | X | |
| 16 | 4464343 Cosse Usage: EL-DISTRIBUTION BOX CONTACT HOUSING 4230181 | X | |
| 17 | 4063087 Cosse Usage: CONTACT HOUSING 4203618 | X | |
| 18 | 4115580 Cosse Usage: CONTACT HOUSING 4117560,4173852 | X | |
| 19 | 4115457 12790614 Cosse Usage: CONTACT HOUSING 4113056,4173852,4410510 | X | |
| 19 | 4115077 12789934 Cosse Usage: CONTACT HOUSING 4410510,4114054,4117164 4117263,4117362,4117461 4173852 | X | |
| 19 | 4115192 12789934 Cosse Usage: CONTACT HOUSING 4113254,4114054,4224887 | X | |
| 20 | 4063970 12790467 Cosse Usage: CONTACT HOUSING 4060869,4224580,9565045 | X | |
| 21 | 4115499 12790414 Cosse Usage: CONTACT HOSING 4113007,4115408,4173803 4176616,4223624,4224606 4411518,4466462 | X | |
| 22 | 9525817 Cosse Usage: CONTACT HOUSING 9525809 | X | |
| 22 | 4409728 30552537 Cosse Usage: CONTACT HOUSING 4201190,4201208,4203253 | X | |
| 23 | 4464293 Cosse Usage: CONTACT HOUSING 4203253 | X | |
| 24 | 4409785 30552538 Cosse Usage: CONTACT HOUSING 4203261 | X | |
| 25 | 4464228 Cosse Usage: CONTACT HOUSING | X | |
| 26 | 4488458 Cosse Usage: CONTACT HOUSING 4201273 | X | |
| 26 | 4488151 Cosse Usage: CONTACT HOUSING 4411740 | X | |
| 26 | 4418505 Cosse Usage: CONTACT HOUSING 4201224,4203378,4203428 4203444,4203477,4203501 4203535,4223568 | X | |
| 27 | 4418489 Cosse Usage: CONTACT HOUSING 4203592 | X | |
| 28 | 4464400 Cosse Usage: CONTACT HOUSING 8544363,8574949 | X | |
| 29 | 4466736 Cosse Usage: CONTACT HOUSING 9565045 | X | |
| 30 | 4224515 Cosse Usage: CONTACT HOUSING 4409165,4409181,4409199 | X | |
| 31 | 4412961 12756961 Cosse Usage: CONTACT HOUSING 4463014 | X | |
| 32 | 9509746 Cosse Usage: CONTACT HOUSING 4408894 | X | |
| 34 | 8547804 Bloc connexion Usage: SIDE INDICATOR LAMP CONTACT HOUSING 9503319,9503418,9519679 | X |
