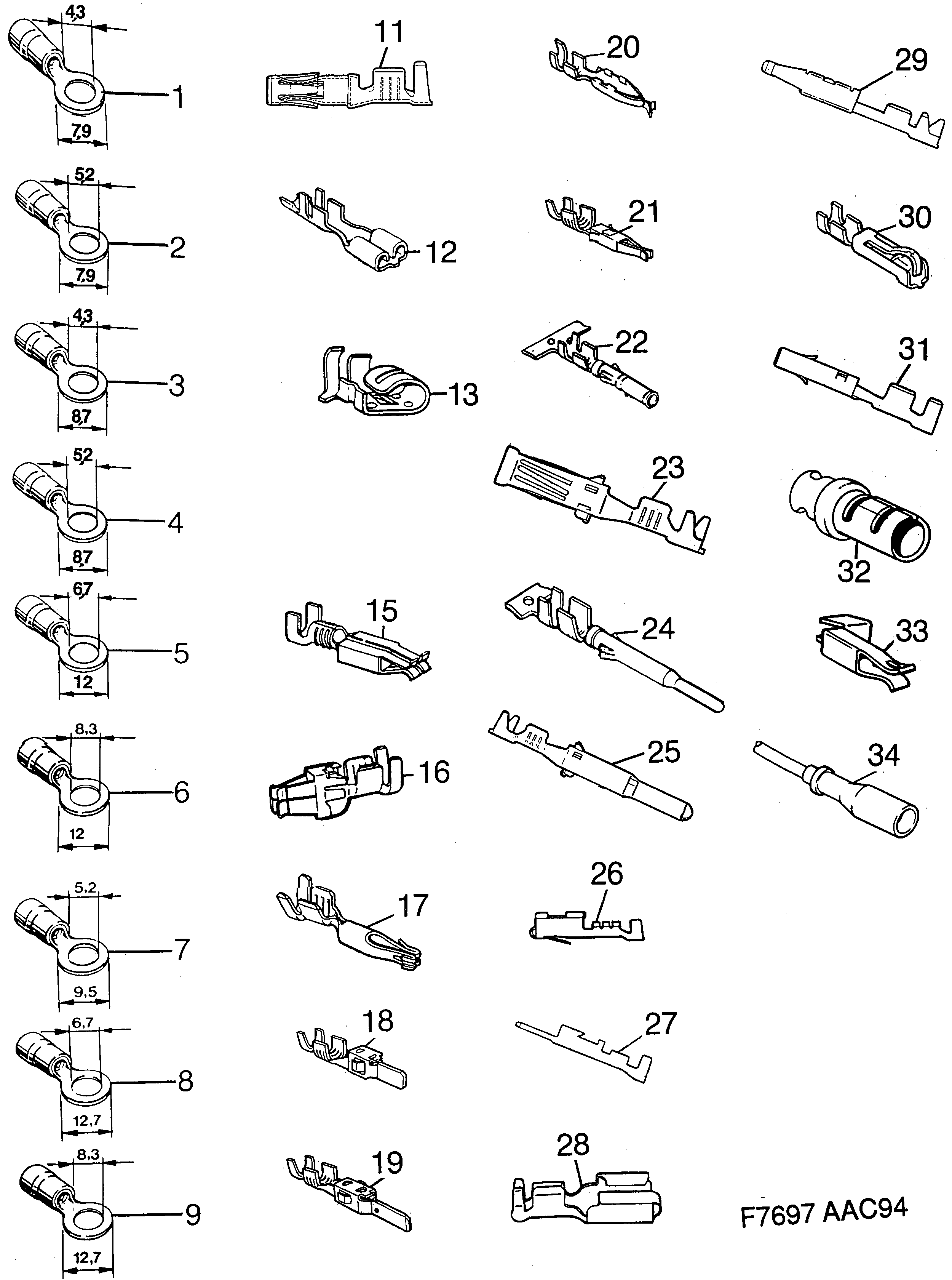

4440: Système électrique, boîte de connexion - Connecteur, etc - Cosse câble
(1996)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7155211 Cosse Usage: 40/253 152 003 | X | |
| 2 | 7155229 Cosse Usage: 40/253 153 001 | X | |
| 3 | 7155237 Cosse Usage: 40/253 172 001 | X | |
| 4 | 7117880 Cosse Usage: 40/253 173 009 | X | |
| 5 | 7829617 Cosse Usage: 40/253 174 007 | X | |
| 6 | 7959349 Cosse | X | |
| 7 | 7155658 Cosse Usage: 40/253 210 009 | X | |
| 8 | 7829666 Cosse Usage: 40/253 211 007 | X | |
| 9 | 7829674 Cosse Usage: 40/253 212 005 | X | |
| 9 | 7977556 Cosse | X | |
| 11 | 4411278 Cosse Usage: CONTACT HOUSING 4411260 | X | |
| 12 | 4409801 Cosse Usage: HORN THEFT ALARM OIL PRESSURE,CONTACT HOUSING 8516916 | X | |
| 12 | 4464442 12798482 Cosse Usage: CONTACT HOUSING 4201315,4203733 | X | |
| 12 | 8522575 Câblage Usage: CONTACT HOUSING 8378630 | X | |
| 12 | 8504797 Cosse Usage: CONTACT HOUSING 8533184 | X | |
| 12 | 8582447 Cosse Usage: CONTACT HOUSING 8533184 | X | |
| 12 | 8582439 Cosse Usage: CONTACT HOUSING 8533184 | X | |
| 13 | 4489084 12756957 Cosse Usage: CONTACT HOUSING 4489076 | X | |
| 15 | 4350526 Cosse Usage: CONTACT HOUSING 4113601,4466462 | X | |
| 15 | 9120791 30520557 Cosse Usage: EL-DISTRIBUTION BOX CONTACT HOUSING 4060893,4113403,4173803 4224168,4224317,9124090 9124157 | X | |
| 16 | 9120957 12789796 Cosse Usage: EL-DISTRIBUTION BOX CONTACT HOUSING 4113205,4114005,4115002 4115408,4176616,4178414 4201323,4203618,4222311 9123381,9123399,9565045 | X | |
| 16 | 4354171 12970428 Cosse Usage: CONTACT HOSING 4113403,4113411 | X | |
| 16 | 4061586 Cosse Usage: CONTACT HOUSING 4113205,4113601,4113809 4114005,4178414,4432316 4432324,4432357,4433439 4489647 | X | |
| 16 | 4464343 Cosse Usage: EL-DISTRIBUTION BOX CONTACT HOUSING 4230181 | X | |
| 17 | 4063087 Cosse Usage: CONTACT HOUSING 4203618,9123555 | X | |
| 18 | 4115580 Cosse Usage: CONTACT HOUSING 4117560,4173852 | X | |
| 19 | 4115457 12790614 Cosse Usage: CONTACT HOUSING | X | |
| 19 | 4115077 12789934 Cosse Usage: CONTACT HOUSING 4410510,4114054,4117164 4117263,4117362,4117461 4173852 | X | |
| 19 | 4115192 12789934 Cosse Usage: CONTACT HOUSING 4113254,4113650,4114054 4224887 | X | |
| 19 | 4115283 Cosse Usage: CONTACT HOUSING 4117297 | X | |
| 20 | 4063970 12790467 Cosse Usage: CONTACT HOUSING 4060869,4224580,9565045 | X | |
| 21 | 4466801 Cosse Usage: CONTACT HOSING 4223624,4517702 | X | |
| 21 | 4115499 12790414 Cosse Usage: CONTACT HOSING 4113007,4113205,4115002 4115408,4173803,4176616 4223624,4224606,4410510 4411518 | X | |
| 22 | 4409728 30552537 Cosse Usage: CONTACT HOUSING 4201208,4203253,4224903 4586871 | X | |
| 23 | 4464293 Cosse Usage: CONTACT HOUSING 4203253,4408910,4489092 | X | |
| 24 | 4409785 30552538 Cosse Usage: CONTACT HOUSING 4203261,4224598 | X | |
| 25 | 4464228 Cosse Usage: CONTACT HOUSING 4203261 | X | |
| 26 | 4488458 Cosse Usage: CONTACT HOUSING 4201273,4434841 | X | |
| 26 | 4488151 Cosse Usage: CONTACT HOUSING 4411740 | X | |
| 26 | 4418505 Cosse Usage: CONTACT HOUSING 4201224,4203378,4203428 4203444,4203477,4203501 4203535,4223568 | X | |
| 26 | 4538310 Cosse Usage: CONTACT HOUSING 4537411 | X | |
| 27 | 4418489 Cosse Usage: CONTACT HOUSING 4203592 | X | |
| 28 | 4464400 Cosse Usage: CONTACT HOUSING 8544363,8574949 | X | |
| 29 | 4466736 Cosse Usage: CONTACT HOUSING | X | |
| 30 | 4224515 Cosse Usage: CONTACT HOUSING 4409165,4409181,4409199 | X | |
| 30 | 4538914 Cosse Usage: CONTACT HOUSING 4538930 | X | |
| 31 | 4412961 12756961 Cosse Usage: CONTACT HOUSING 4463014 | X | |
| 31 | 4538229 Cosse Usage: CONTACT HOUSING 4466462 | X | |
| 32 | 9509746 Cosse Usage: CONTACT HOUSING 4224457,4408894 | X | |
| 34 | 8547804 Bloc connexion Usage: SIDE INDICATOR LAMP CONTACT HOUSING 9503319,9503418,9503434 9519679 | X |
