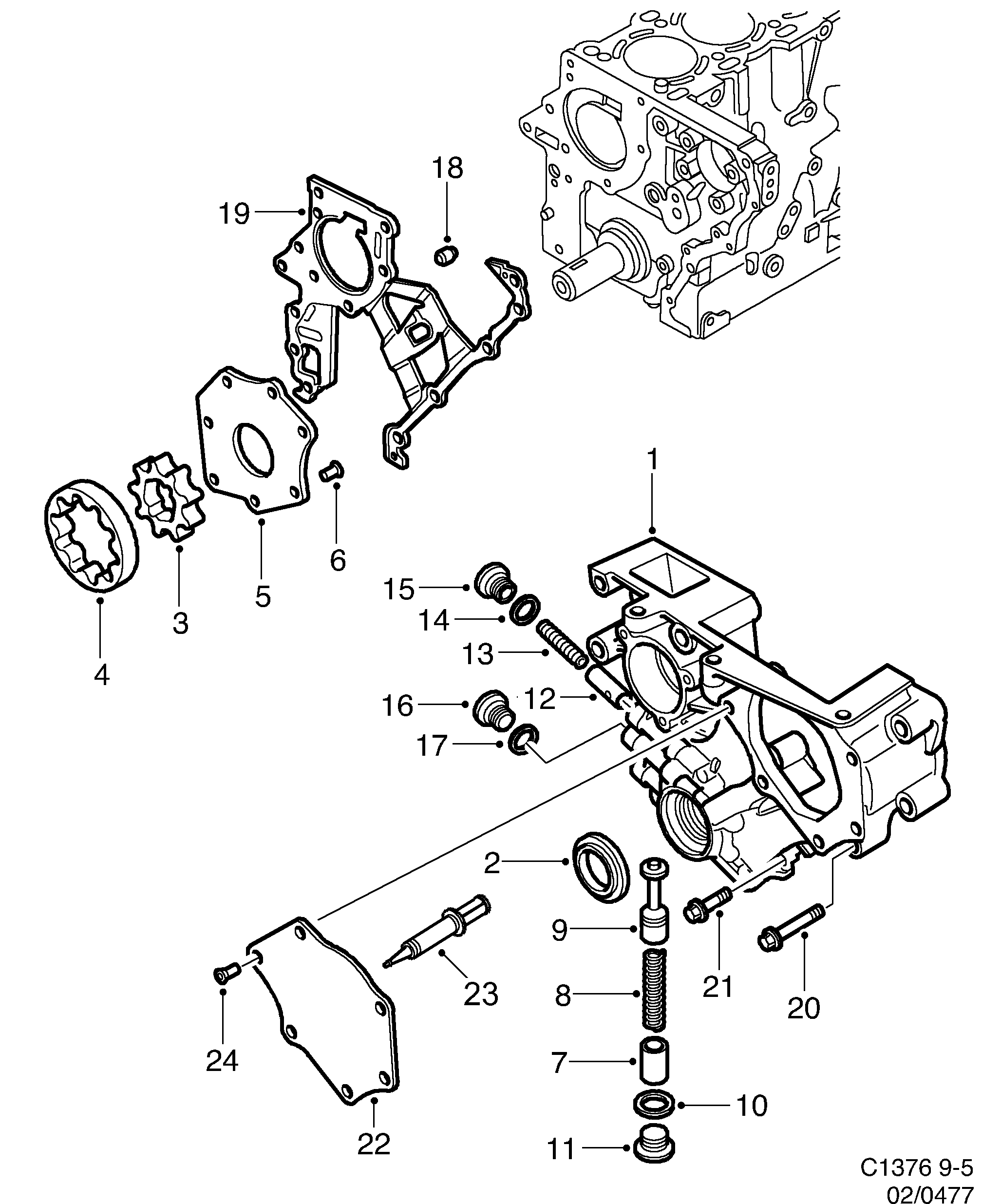

445: Moteur - Système de graissage - Pompe huile
(2002 - 2005 | 4-CYL,DIESEL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9543448 24426999 Capot | 1 | |
| 2 | 9543455 90500805 Joint | 1 | |
| 3 | 9543505 9228266 Rotor pompe | 1 | |
| 4 | 9228265 Rotor pompe Usage: (95 43 471) | 1 | |
| 5 | 9543513 9129049 Carter pompe huile | 1 | |
| 6 | 9543521 11093893 Vis | 7 | |
| 7 | 9543547 90502640 Piston | 1 | |
| 8 | 9543554 90502641 Ressort | 1 | |
| 9 | 9543539 90502639 Piston | 1 | |
| 10 | 9148404 11093042 Joint | 1 | |
| 11 | 9543562 11097551 Bouchon | 1 | |
| 12 | 9543570 90502642 Piston | 1 | |
| 13 | 9543588 90502643 Ressort | 1 | |
| 14 | 9544628 11016282 Bague étanchéité | 1 | |
| 15 | 9543604 90528616 Tampon | 1 | |
| 16 | 4348124 11097541 Tampon | 1 | |
| 17 | 4345377 11017111 Joint | 1 | |
| 18 | 9542853 90281475 Goujon élastique | 2 | |
| 19 | 9543646 9202219 Joint | 1 | |
| 20 | 9542846 11093792 Vis | 11 | |
| 21 | 9543596 11093612 Vis | 2 | |
| 22 | 9544099 90530170 Couvercle | 1 | |
| 23 | Joint | 1 | |
| 24 | 9544107 11093893 Vis | 6 |
