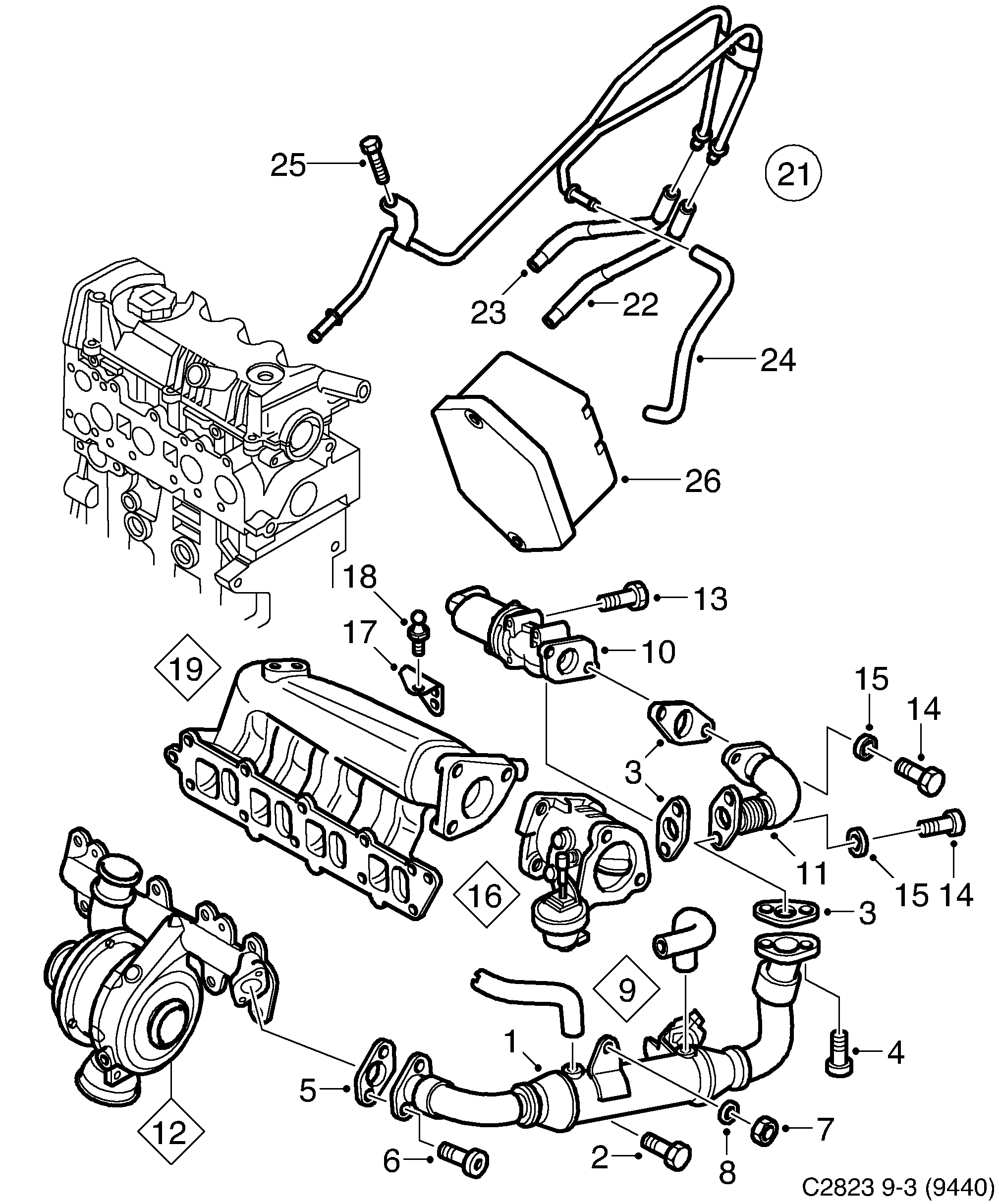

4550: Moteur - Système d'admission et d'échappement - Système EGR
(2005 - 2010 | 4-CYL,DIESEL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 93178881 55210702 Tuyau EGR Usage: 2005-2006 | 1 | |
| 1 | 55203716 55210702 Dépose/reposeur chaleur Usage: 2007-2007 | 1 | |
| 1 | 55210702 Dépose/reposeur chaleur Usage: 2008-2010 | 1 | |
| 2 | 93177417 Vis Usage: M8X20 | 2 | |
| 3 | 93178885 Joint | 3 | |
| 4 | 93179194 93179195 Vis Usage: M8X20 | 2 | |
| 5 | 93179092 Joint | 1 | |
| 6 | 93179098 Vis | 2 | |
| 7 | 93179210 Ecrou | 1 | |
| 8 | 93178882 Rondelle Usage: 6X12 | 1 | |
| 9 | Pompe de refroidissement | 1 | |
| 10 | 93189082 55215032 Soupape EGR Usage: 2005-2007 | Egalement disponible en unité de rechange. | (93 181 976) | 1 | |
| 10 | 55215032 Soupape EGR Usage: 2008-2010 | Egalement disponible en unité de rechange. | 1 | |
| 11 | 93178884 Tuyau EGR | 1 | |
| 12 | Turbocompresseur | 1 | |
| 13 | 93178887 Vis Usage: M8X80 | 3 | |
| 14 | 93179195 Vis | 2 | |
| 15 | 93178914 Rondelle | 4 | |
| 16 | Boîtier volet | 1 | |
| 17 | 93181989 Console | 1 | |
| 18 | 12992539 55560110 Boulon articulation Usage: 2005-2005 | 1 | |
| 18 | 55560110 Boulon articulation Usage: 2006-2010 | 1 | |
| 19 | Tubulure admission | 1 | |
| 21 | 93182414 93184754 Tuyau Usage: -2005 | 1 | |
| 21 | 93184754 Tuyau Usage: 2005-2005 | 1 | |
| 21 | 93189412 Tuyau Usage: 2006-2007 | 1 | |
| 21 | 93195146 Tuyau Usage: 2008-2010 | 1 | |
| 22 | 93181642 Flexible | 1 | |
| 23 | 93181640 Flexible | 1 | |
| 24 | 93181634 93184755 Flexible Usage: -2005 | 1 | |
| 24 | 93184755 Flexible Usage: 2005- | 1 | |
| 25 | 93191736 Vis Usage: M6 x 12 | 1 | |
| 26 | 55187748 Réservoir vide | 1 |
