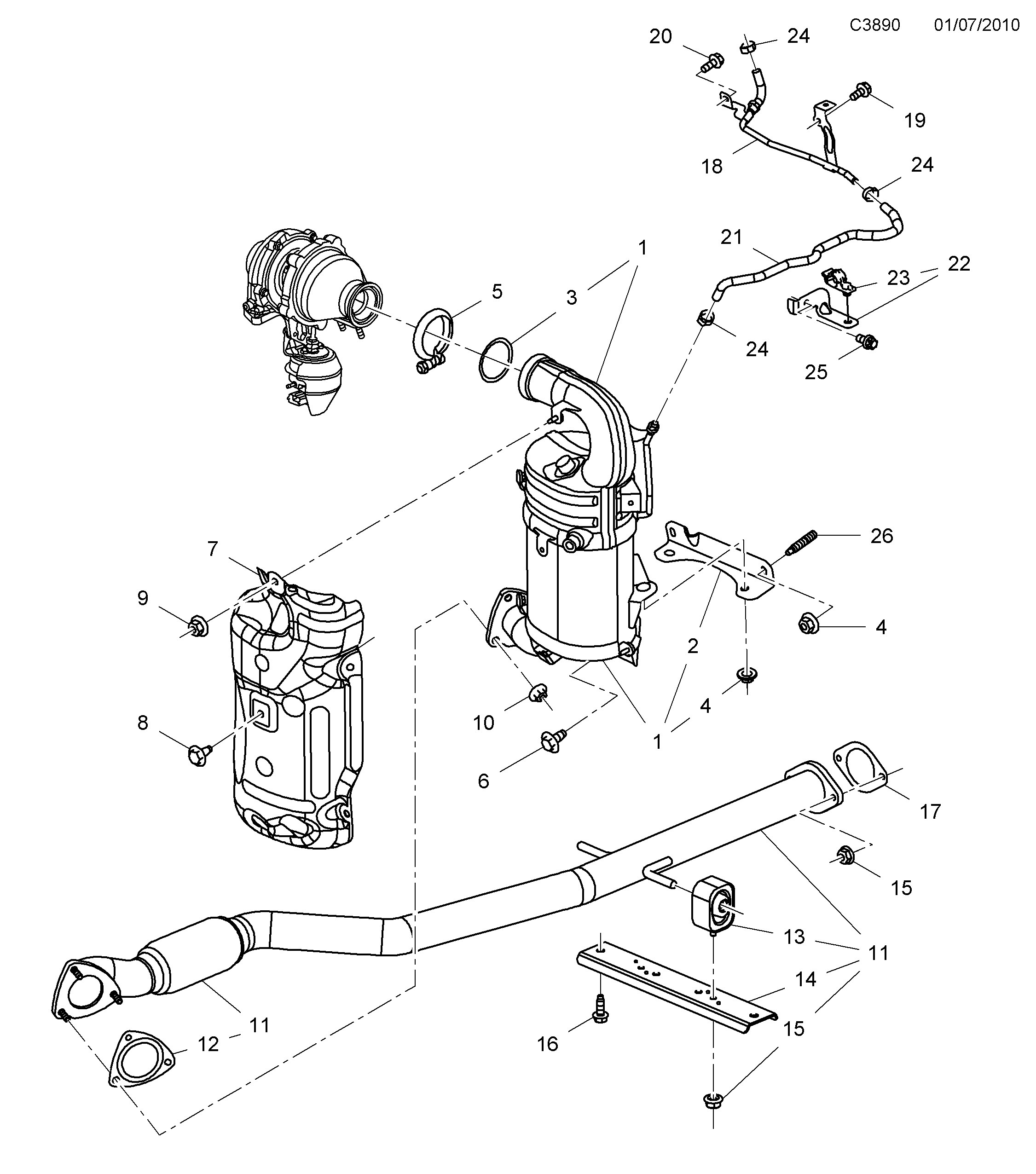

4625: Moteur - Système d'admission et d'échappement - Système d'échappement - Avant
(2010 - 2011 | 4-CYL,DIESEL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 55562315 Convertisseur catalytique | 1 | |
| 2 | 55562330 Fixation | 1 | |
| 3 | 55187584 Joint | 1 | |
| 4 | 11514519 Ecrou Usage: Support catalyseur | M8 | 4 | |
| 5 | 55566094 Collier de serrage | 1 | |
| 6 | 11589163 Vis Usage: Support catalyseur | M10X20 | 2 | |
| 7 | 55562332 Tôle isolante Usage: catalyseur | 1 | |
| 8 | 11519374 Vis Usage: Tôle isolante | M6X12 | 5 | |
| 9 | 11609411 Ecrou Usage: Tôle isolante | M6 | 2 | |
| 10 | 11102751 Ecrou hexagonal Usage: convertisseur catalytique a tuyau d'echappement | M8 | 3 | |
| 11 | 13229522 Tuyau Usage: Tuyau avant a tuyau central | FRONT | 1 | |
| 12 | 13255811 Joint | 1 | |
| 13 | 13229780 Suspension | 1 | |
| 14 | 13229791 Fixation | ||
| 15 | 11516076 Ecrou Usage: M8 | 1 | |
| 15 | 11516076 Ecrou Usage: M8 | 2 | |
| 16 | 11588723 Vis Usage: M8X25 | 2 | |
| 17 | 13229872 Joint | 1 | |
| 18 | 55566128 Tuyau Usage: Capteur de pression du différentiel | 1 | |
| 19 | 93177489 Vis Usage: M6X14 | 1 | |
| 20 | 93177781 Vis Usage: M6X16 | 1 | |
| 21 | 55566187 Tuyau Usage: Capteur de pression du différentiel | 1 | |
| 22 | 55567157 Fixation | 1 | |
| 23 | 55567158 Serre-câble | 1 | |
| 24 | 55353931 Serre-câble | X | |
| 25 | 11097791 Vis Usage: M6X12 | 1 | |
| 26 | 11570204 Boulon Usage: catalyseur Etrier | 2 |
