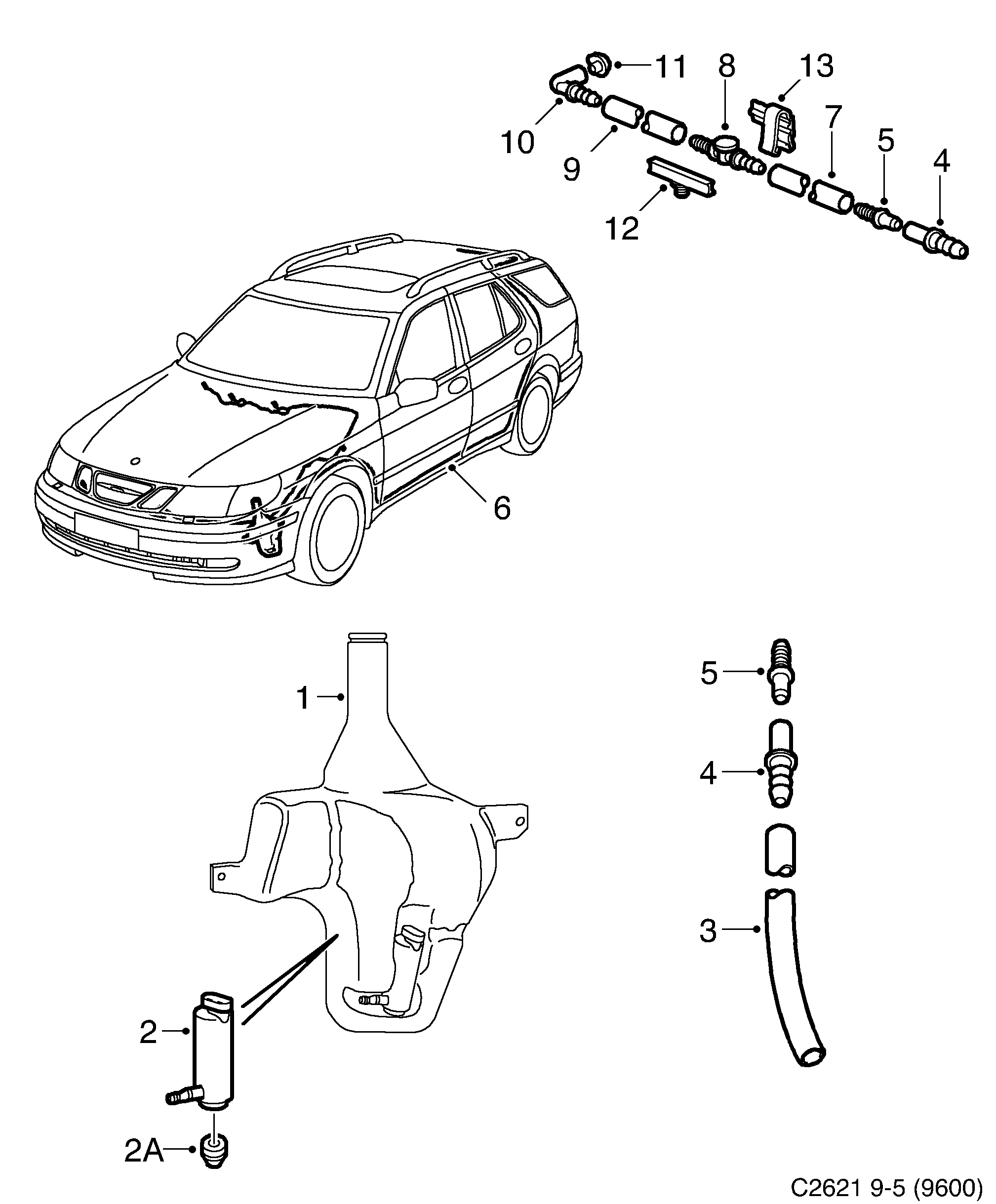

497: Système électrique, généralités - Autre équipement électrique - Ensemble lave-glace - Lunette arrière
(2002 - 2010 | 5D)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | Réservoir | 1 | |
| 2 | 4832895 90585761 Pompe lave-glace Usage: 2002-2005 | 1 | |
| 2 | 90585761 Pompe lave-glace Usage: 2006-2010 | 1 | |
| 2A | 5141767 Bague Usage: -2005 | 1 | |
| 2A | 90045821 Joint Usage: 2005- | 1 | |
| 3 | 8549933 12788576 Flexible Usage: L= 950 MM | 1 | |
| 4 | 4832754 12787619 Tuyau raccord | 2 | |
| 5 | 4832762 12788577 Tuyau raccord | 2 | |
| 6 | 8549933 12788576 Flexible Usage: L=6470 MM | 1 | |
| 7 | 8549941 Flexible Usage: L=1900 MM | 1 | |
| 8 | 5142732 5336979 Soupape Usage: 2002-2002 | 1 | |
| 8 | 5336979 Soupape Usage: 2003-2010 | 1 | |
| 9 | 8549941 Flexible Usage: L=40 MM | 1 | |
| 10 | 4915153 Tuyau raccord | 1 | |
| 11 | Gicleur | 1 | |
| 12 | 4677522 Clip | 6 | |
| 13 | 4813796 Clip | 3 | |
8549933 12788576 Flexible Usage: L=10 000 MM |
