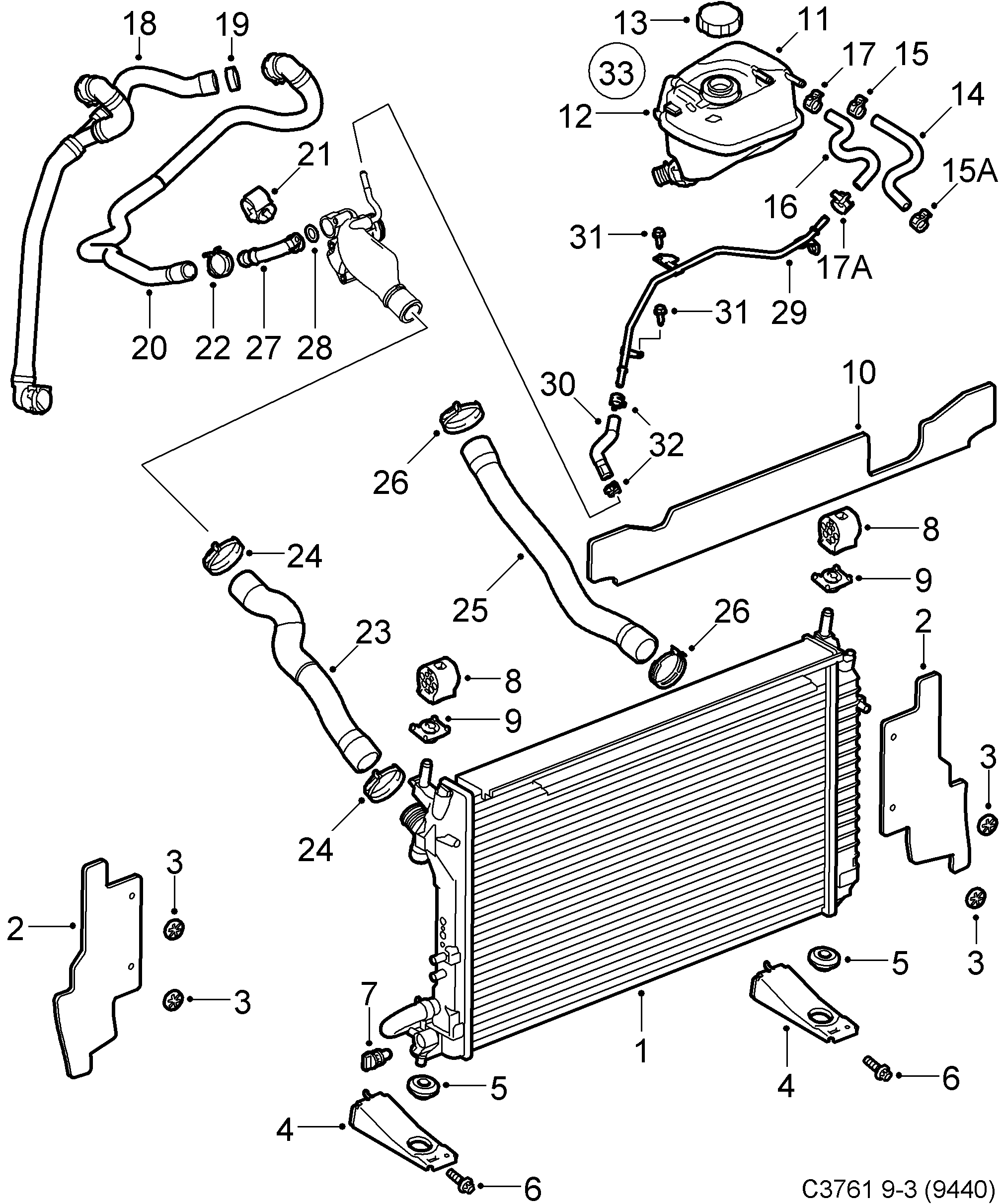

5010: Moteur - Système de refroidissement - Radiateur - Vase expansion
(2006 - 2010 | B284)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 12805057 Radiateur | 1 | |
| 1 | 12805055 Radiateur | 1 | |
| 2 | 12761748 Déflecteur | 2 | |
| 3 | 92151914 Clip | 4 | |
| 4 | 12789871 Support radiateur | 2 | |
| 5 | 90091989 Bague caoutchouc | 2 | |
| 6 | 11900025 Vis | 2 | |
| 7 | 24411010 Bouchon drainage | 1 | |
| 8 | 13186475 Ressort | 2 | |
| 9 | Clip Usage: N'est pas une pièce de rechange distincte. | 1 | |
| 10 | 12800612 Joint | 1 | |
| 11 | 12759330 Vase expansion Usage: 2006-2007 | 1 | |
| 11 | 12842086 Vase expansion Usage: 2008-2010 | 1 | |
| 12 | 12805062 Flexible | 1 | |
| 13 | 9202799 Couvercle | 1 | |
| 14 | 12804553 90572589 Flexible Usage: -2008 | 1 | |
| 14 | 93194927 90572589 Jeu flexibles Usage: 2008-2008 | Jeu flexibles | 1 | |
| 14 | 12842477 Flexible Usage: 2009-2010 | 1 | |
| 15 | 90572589 Collier serrage Usage: 2006-2009 | D=19MM | 1 | |
| 15 | 12822259 Collier serrage Usage: 2010-2010 | D=18MM | 1 | |
| 15A | 90572589 Collier serrage Usage: 2006-2010 | D=19MM | 1 | |
| 16 | 12805654 90572589 Flexible Usage: -2008 | 1 | |
| 16 | 93194927 90572589 Jeu flexibles Usage: 2008-2008 | Jeu flexibles | 1 | |
| 16 | 12842478 Flexible Usage: 2009-2010 | 1 | |
| 17 | 90572589 Collier serrage Usage: 2006-2009 | D=19MM | 1 | |
| 17 | 12822259 Collier serrage Usage: 2010-2010 | D=18MM | 1 | |
| 17A | 90572589 Collier serrage Usage: 2006-2010 | D=19MM | 1 | |
| 18 | 12804554 Flexible Usage: 2006-2010 | 1 | |
| 18 | 12780089 Flexible Usage: 2008-2010 | Avec transmission intégrale (XWD) | 1 | |
| 19 | 90572594 Collier serrage | 1 | |
| 20 | 12793423 Flexible Usage: 2006-2010 | 1 | |
| 21 | 92150195 13137556 Agrafe | 1 | |
| 22 | 90572592 Collier serrage | 1 | |
| 23 | 12792041 Flexible | 1 | |
| 24 | 13136147 Collier serrage | 2 | |
| 25 | 12792042 Flexible Usage: 2006-2010 | 1 | |
| 26 | 13136147 Collier serrage | 1 | |
| 27 | 55559727 Tuyau Usage: 2006-2010 | Admission Dépose/reposeur chaleur | 1 | |
| 28 | 12588318 Joint torique Usage: 2006-2010 | 1 | |
| 29 | 55556596 Tuyau | 1 | |
| 30 | 55556597 Flexible | 1 | |
| 31 | 11900162 Vis à tête hexagonale | 3 | |
| 32 | 90530642 Collier serrage | 2 | |
| 33 | 93197033 Vase expansion Usage: 2009-2010 | Kit complet | 1 | |
| 11 | 12842086 Vase expansion Usage: 2008-2010 | 1 | |
| 14 | 12842477 Flexible Usage: 2009-2010 | 1 | |
| 16 | 12842478 Flexible Usage: 2009-2010 | 1 | |
| 15 | 90572589 Collier serrage Usage: 2009-2010 | 1 | |
| 17 | 90572589 Collier serrage Usage: 2009-2010 | 1 |
