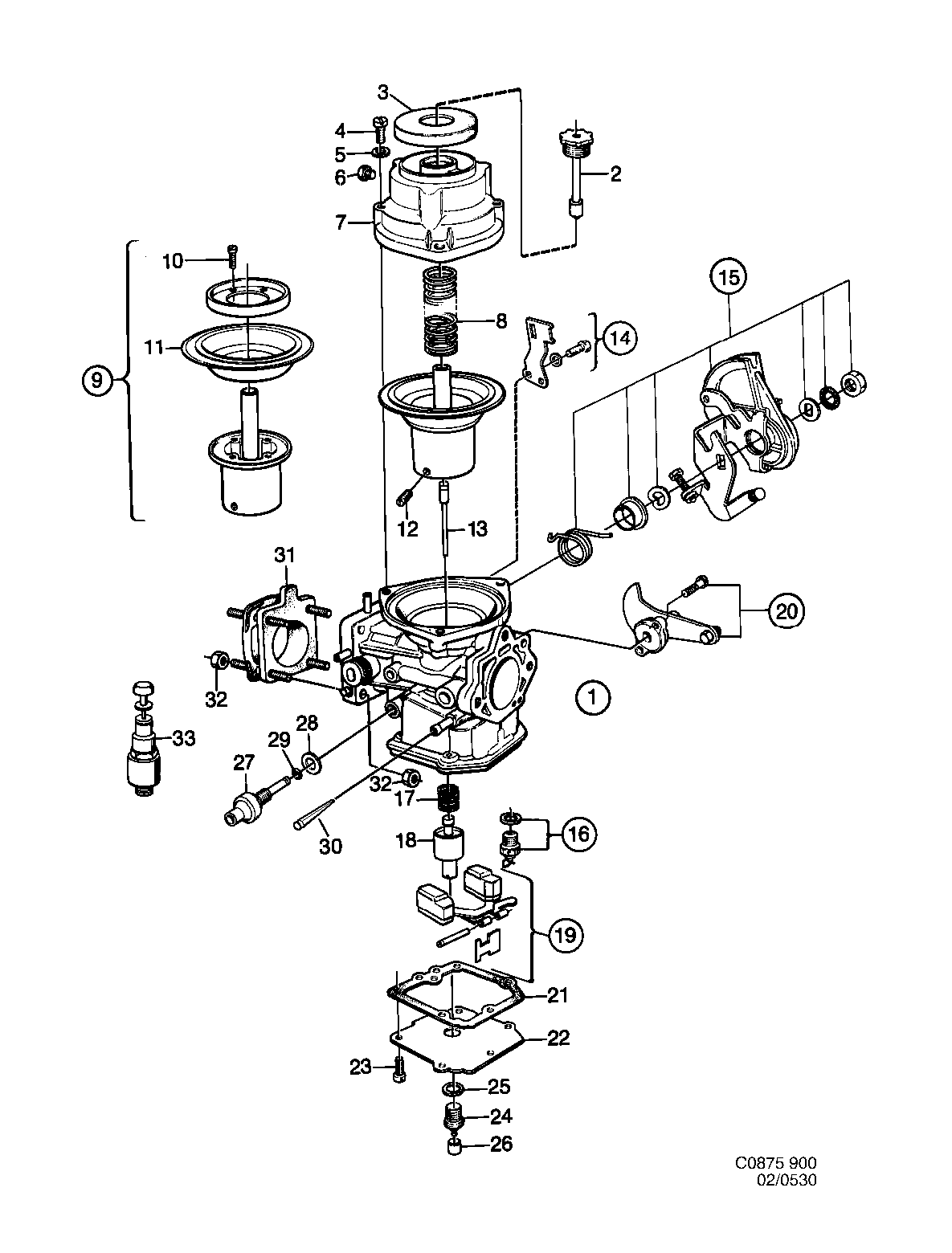

530: Moteur - Système de carburant - Carburateur
(1990 - 1993)
Concerne aussi CV 1994
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7581093 Carburateur | 1 | |
| 2 | 7584725 Piston amortisseur | 1 | |
| 3 | 7584717 Couvercle | 1 | |
| 4 | 7584691 Vis | 1 | |
| 5 | 7584709 Rondelle | 3 | |
| 6 | 7584683 Vis | 1 | |
| 7 | 7584675 Diffuseur | 1 | |
| 8 | 7584667 Ressort | 1 | |
| 9 | 7584618 Piston | 1 | |
| 10 | 7584634 Vis | 4 | |
| 11 | 7584626 Diaphragme | 1 | |
| 12 | 7584659 Vis | 1 | |
| 13 | 7584642 Aiguille carburant | 1 | |
| 14 | 7584733 Fixation | 1 | |
| 15 | 7584493 Levier | 1 | |
| 16 | 7584535 Pointeau flotteur | 1 | |
| 17 | 7584519 Ressort | 1 | |
| 18 | 7584527 Gicleur | 1 | |
| 19 | 7584543 Flotteur | 1 | |
| 20 | 7584501 Starter | 1 | |
| 21 | 7584550 Joint | 1 | |
| 22 | 7584568 Couvercle | 1 | |
| 23 | 7584600 Vis | 6 | |
| 24 | 7584576 Vis réglage | 1 | |
| 25 | 7584584 Joint torique | 1 | |
| 26 | 7537806 Tampon | 1 | |
| 27 | 7584741 Soupape | 1 | |
| 28 | 7584758 Joint | 1 | |
| 29 | 7584766 Joint torique | 1 | |
| 30 | 7584485 Filtre carburant | 1 | |
| 31 | 7581473 Bride | 1 | |
| 32 | 8151326 11900429 Ecrou | 8 | |
| 33 | 9315466 Soupape | 1 |
