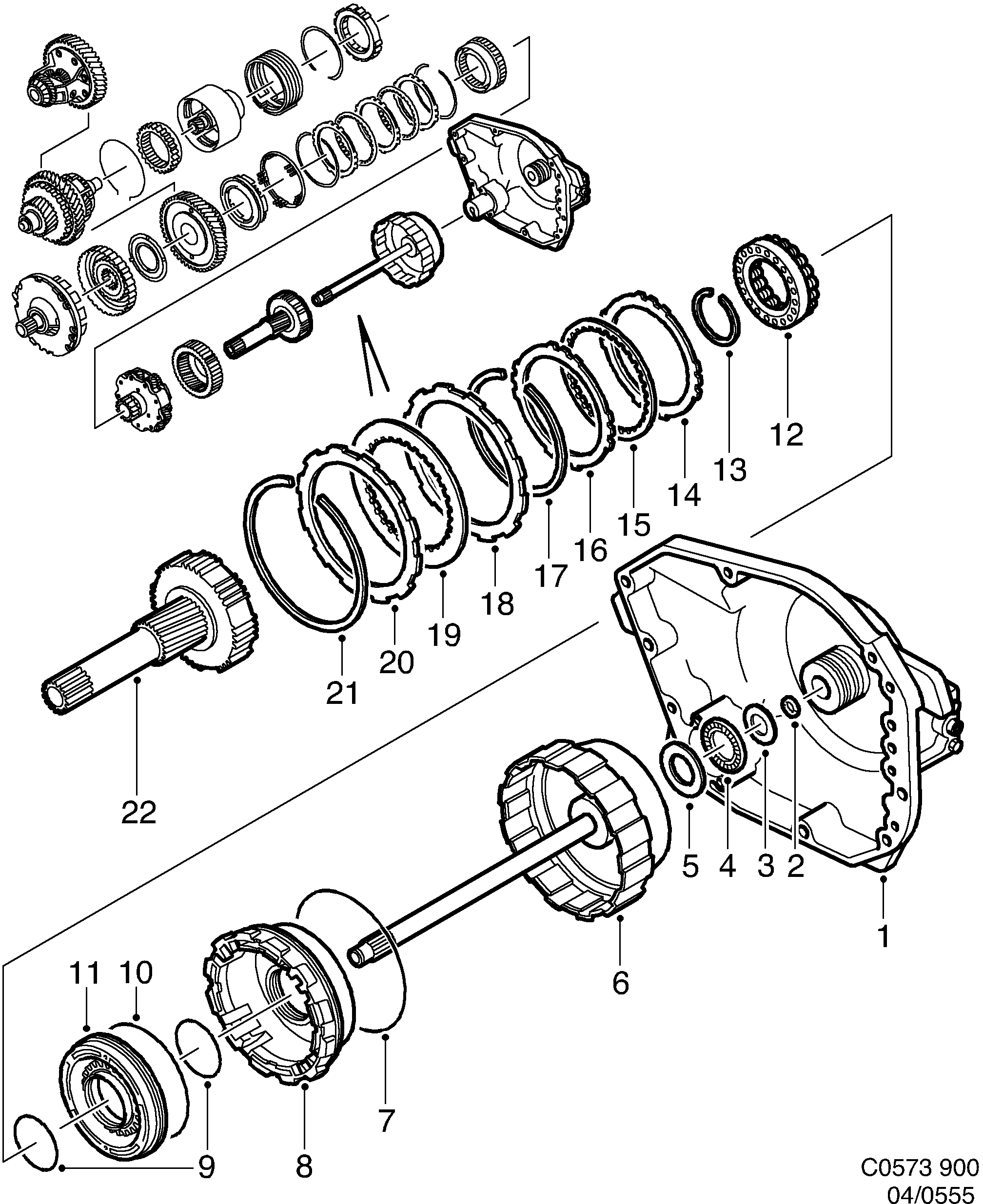

555: Transmission - Boîte de vitesses, automatique - Coupleur C1 - Coupleur C2
(1994 - 1998 | A, M)
| Pos. | Réf. | Qté | |
|---|---|---|---|
Boîte de vitesses, automatique | |||
| 1 | Couvercle | 1 | |
| 2 | 5250246 90348782 Joint torique | 1 | |
| 3 | 5253570 Rondelle butée | 1 | |
| 4 | 5250899 Roulement axial à aiguilles | 1 | |
| 5 | 5250907 90348839 Rondelle butée Usage: 0,81MM | 1 | |
| 5 | 5250915 90442172 Rondelle butée Usage: 1,15MM | 1 | |
| 6 | 5253307 9119582 Arbre Usage: 1994-1996 | 1 | |
| 6 | 9119582 Arbre primaire Usage: 1997-1998 | (52 55 526) | 1 | |
| 7 | 5250063 90348767 Joint torique | 1 | |
| 8 | 5250089 90444637 Piston | 1 | |
| 9 | 5250071 90348768 Joint torique | 2 | |
| 10 | 5164926 93188441 Joint torique Usage: 1994-1996 | 1 | |
| 10 | 5164926 93188441 Joint torique Usage: 1997-1998 | B234I, B258I | 1 | |
| 10 | 5251442 93178242 Joint torique Usage: 1997-1998 | B204I, B204L | 1 | |
| 11 | 5250113 90487807 Piston Usage: (52 50 113) | 1 | |
| 12 | 5250097 Ressort rappel | 1 | |
| 13 | 5250105 90348773 Anneau verrouillage | 1 | |
| 14 | 5250121 90348774 Plaque | 4 | |
| 15 | 5253315 Disque Usage: 1994-1996 | B204L, B234I, B258I | 4 | |
| 15 | 5250139 Disque Usage: 1997-1998 | B204L, B234I, B258I | 4 | |
| 15 | 5253398 Disque Usage: 1994-1996 | B204I | 4 | |
| 15 | 5251483 90541961 Disque Usage: 1997-1998 | B204I | 4 | |
| 16 | 5250147 Disque Usage: 3,6MM | 1 | |
| 16 | 5250154 Disque Usage: 3,8MM | 1 | |
| 16 | 5250162 Disque Usage: 4,0MM | 1 | |
| 17 | 5253687 90348777 Anneau verrouillage | 1 | |
| 18 | 5250188 Plaque | 4 | |
| 19 | 5253323 5255161 Disque Usage: 1994-1995 | 4 | |
| 19 | 5253323 5255161 Disque Usage: 1996-1996 | B204I, B204L | 4 | |
| 19 | 5253398 Disque Usage: 1996-1998 | B234I, B258I | 4 | |
| 19 | 5253398 Disque Usage: 1997-1998 | B204I | 4 | |
| 19 | 5250196 Disque Usage: 1997-1998 | B204L | 4 | |
| 20 | 5253331 5250204 Disque Usage: 1994-1996 | 3,6MM | 1 | |
| 20 | 5250204 Disque Usage: 1997-1998 | 3,6MM | 1 | |
| 20 | 90542939 Disque embrayage Usage: 1994-1998 | 3,8MM | 1 | |
| 20 | 5253356 5250220 Disque Usage: 1994-1996 | 4,0MM | 1 | |
| 20 | 5250220 Disque Usage: 1997-1998 | 4,0MM | 1 | |
| 21 | 5253364 Anneau verrouillage Usage: 1994-1995 | 1 | |
| 21 | 5253364 Anneau verrouillage Usage: 1996-1996 | B204I, B204L | 1 | |
| 21 | 5255179 9199893 Anneau verrouillage Usage: 1997-1998 | B204I, B204L | 1 | |
| 21 | 5255179 9199893 Anneau verrouillage Usage: 1996-1998 | B234I, B258I | 1 | |
| 22 | Planétaire |
