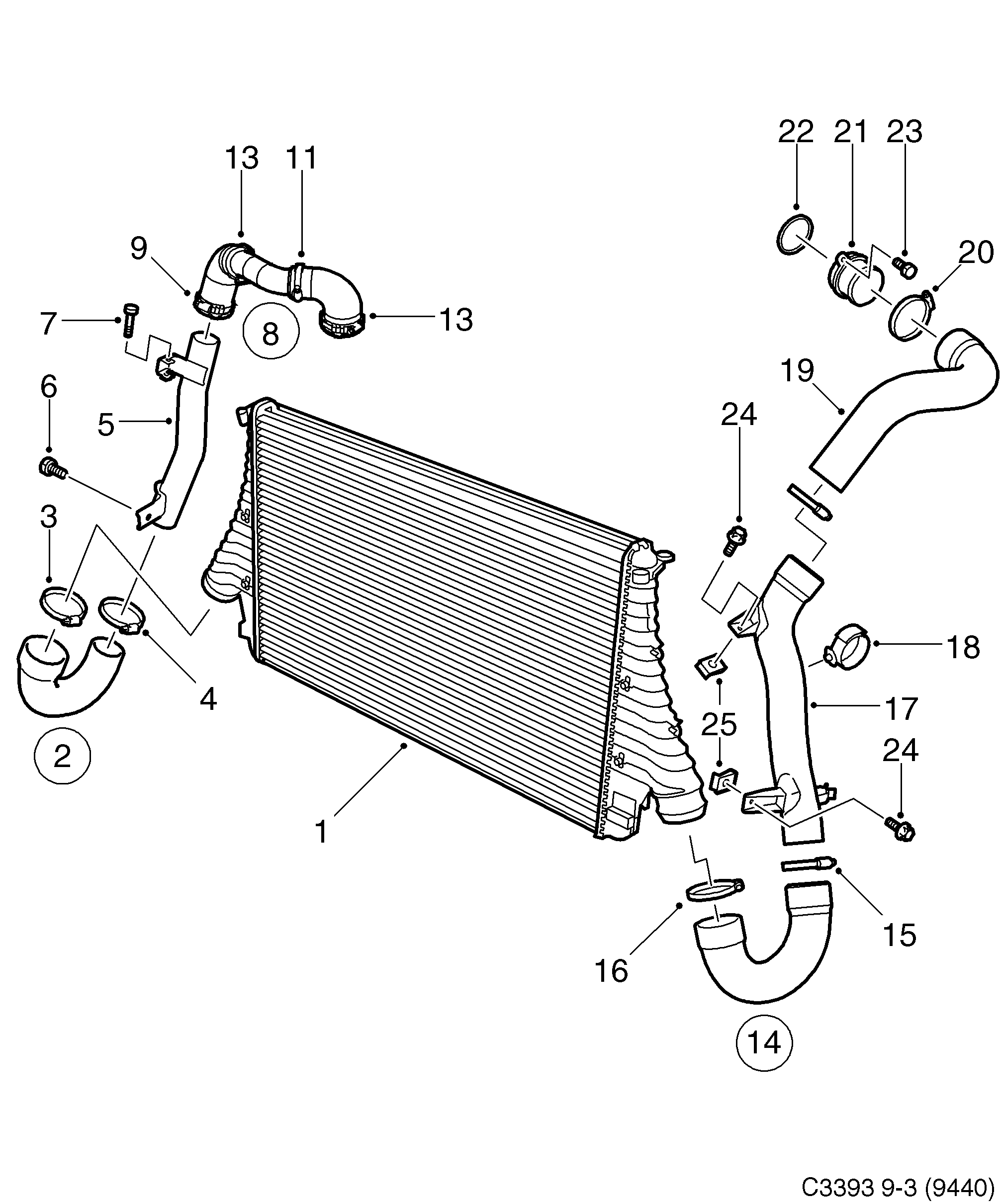

5575: Moteur - Système de refroidissement - Refoidisseur d'air de suralimentation
(2005 - 2010 | 4-CYL,DIESEL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 12804713 12765753 Refoidisseur d'air de suralimentation Usage: -2005 | 1 | |
| 1 | 12765753 Refoidisseur d'air de suralimentation Usage: 2005- | 1 | |
| 2 | 55350918 Canal air Usage: Z19DT, Z19DTH | 1 | |
| 3 | 24468103 Collier serrage Usage: 61-72 MM | 1 | |
| 4 | 24442227 Collier serrage Usage: 43-53 MM | 1 | |
| 5 | 55350920 Tuyau suralimentation | 1 | |
| 6 | 11096971 Vis Usage: 2005-2005 | 1 | |
| 6 | 11095091 Vis à tête hexagonale Usage: 2006-2010 | 1 | |
| 7 | 11096941 11093953 Vis Usage: -2004 | 1 | |
| 7 | 11093953 Vis Usage: 2004- | 1 | |
| 8 | 55354826 13289474 Canal air Usage: Z19DT, Z19DTH | 1 | |
| 9 | 24442225 Collier serrage Usage: 54-64 MM | 1 | |
| 11 | 24442227 Collier serrage Usage: 43-53 MM | 1 | |
| 13 | 24442227 Collier serrage Usage: 43-53 MM | 2 | |
| 14 | 55350922 13289462 Canal air Usage: 2005-2007 | Z19DT | 1 | |
| 14 | 13289462 Canal air Usage: 2008-2010 | Z19DT | 1 | |
| 14 | 55350914 13289461 Canal air Usage: 2005-2007 | Z19DTH | 1 | |
| 14 | 13289461 Canal air Usage: 2008-2010 | Z19DTH | 1 | |
| 15 | 24468103 Collier serrage Usage: 61-72 MM | 1 | |
| 16 | 24468103 Collier serrage Usage: 61-72 MM | 2 | |
| 17 | 55350916 Tuyau suralimentation | 1 | |
| 18 | 9202590 Clip | 1 | |
| 19 | 55350923 Flexible suralimentation Usage: Z19DT | 1 | |
| 19 | 55350915 Flexible suralimentation Usage: Z19DTH | 1 | |
| 20 | 24468103 Collier serrage Usage: 61-72 MM | 1 | |
| 21 | 55351945 Joint | 1 | |
| 22 | 12780867 Manchon de raccordement | 1 | |
| 23 | 11096971 Vis Usage: 2005-2005 | 2 | |
| 23 | 11095091 Vis à tête hexagonale Usage: 2006-2010 | 2 | |
| 24 | 11093961 Vis | 2 | |
| 25 | 12773488 Clip | 2 |
