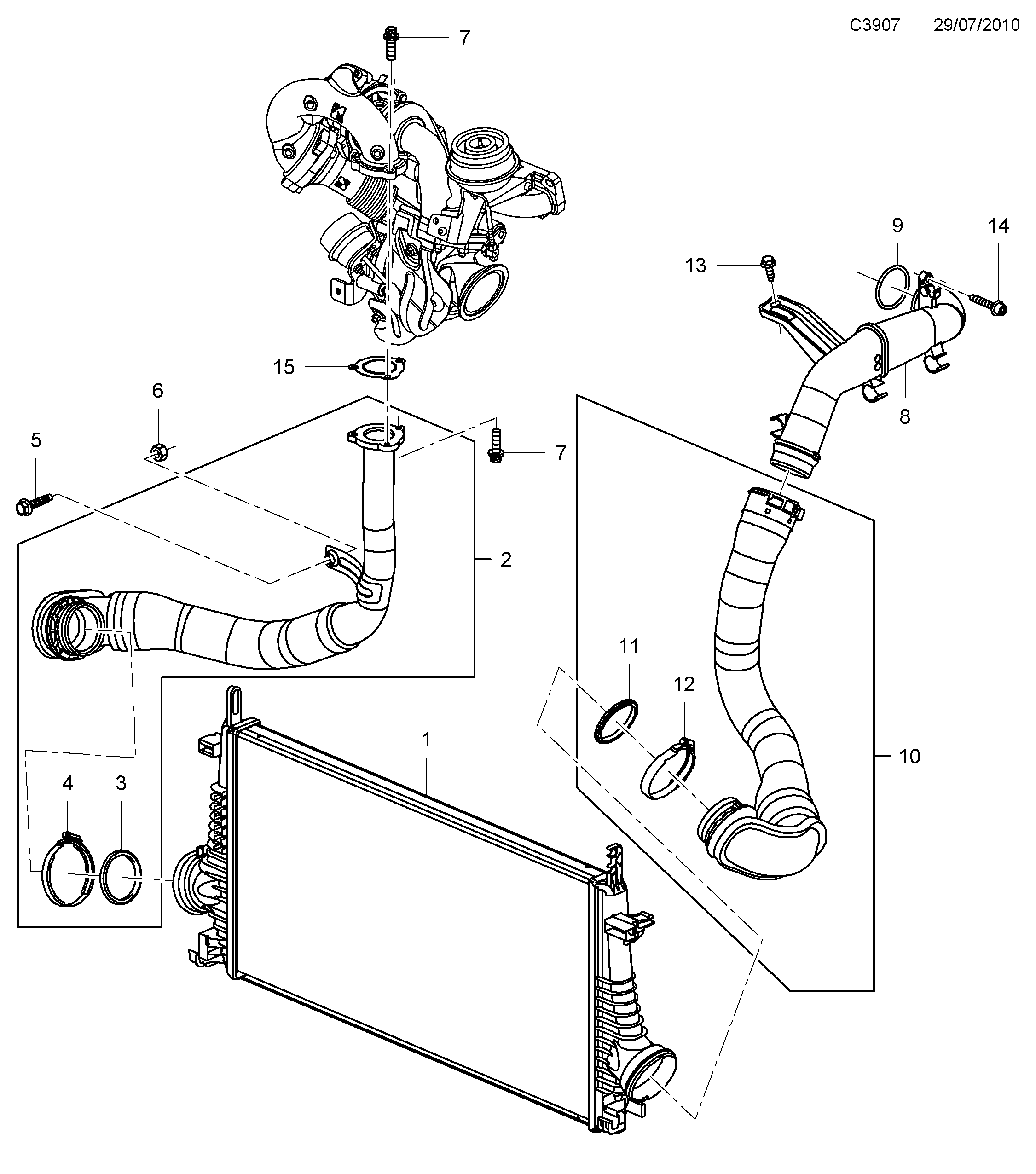

5580: Moteur - Système de refroidissement - Refoidisseur d'air de suralimentation
(2010 - 2011 | 4-CYL,DIESEL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 13241751 Refoidisseur d'air de suralimentation | 1 | |
| 2 | 12825767 Flexible Usage: Admission | 1 | |
| 3 | 13265349 Joint | 1 | |
| 4 | 13280718 Serre-câble | 1 | |
| 5 | 11093953 Vis Usage: M6X30 | 1 | |
| 6 | 12778389 Ecrou Usage: Flexible admission | M6 | 1 | |
| 7 | 11097422 Vis Torx Usage: M8X25 | 3 | |
| 8 | 13240176 Tuyau Usage: Sortie | 1 | |
| 9 | 55351945 Joint Usage: Flexible d'echappement | 1 | |
| 10 | 13242121 Tuyau Usage: Sortie | 1 | |
| 11 | 13280719 Joint | 1 | |
| 12 | 13280718 Serre-câble | 1 | |
| 13 | 11588712 Vis Usage: M6X20 | 1 | |
| 14 | 13294059 Vis Usage: M6X33 | 3 | |
| 15 | 13247991 Joint Usage: Flexible admission | 1 |
