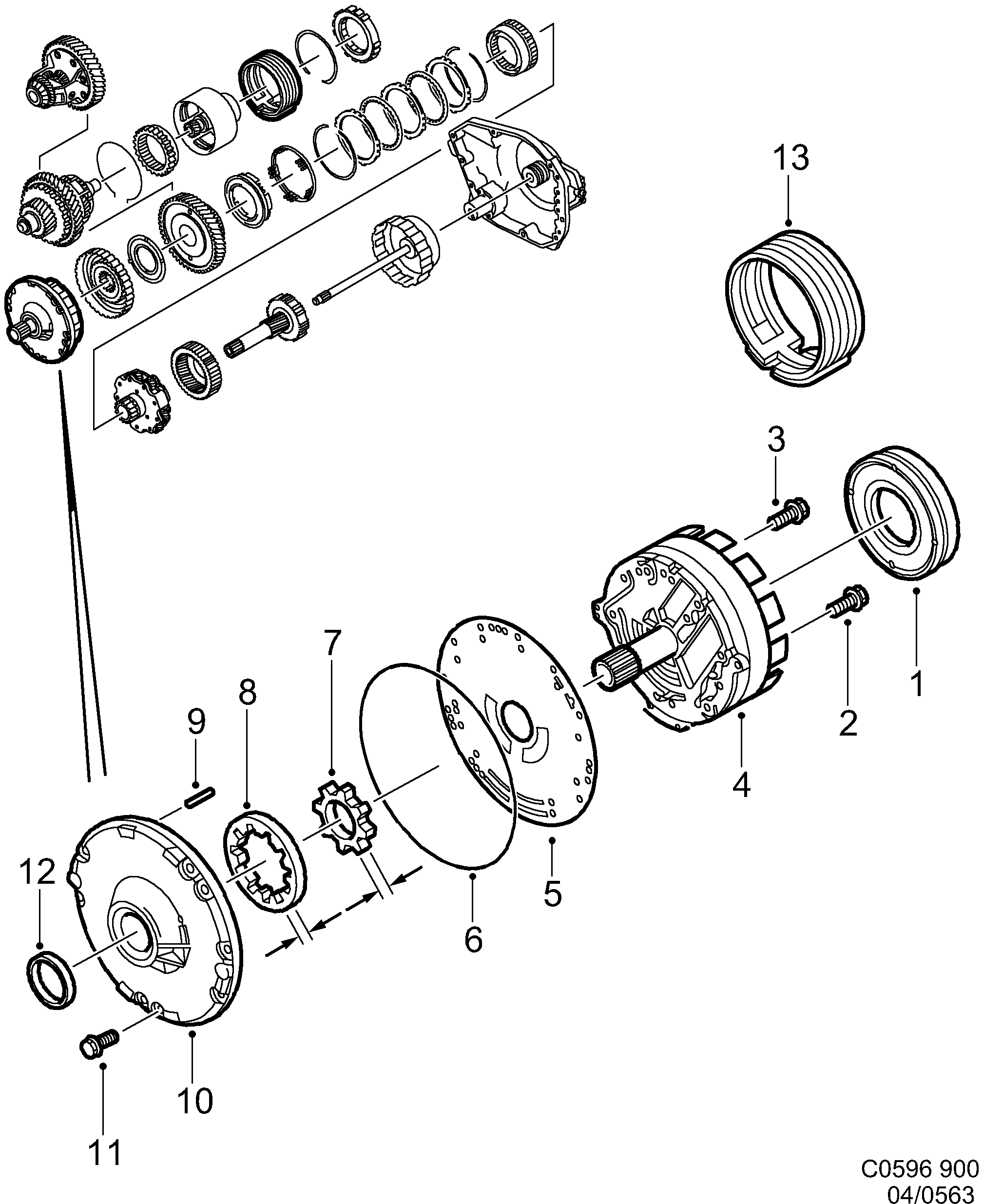

563: Transmission - Boîte de vitesses, automatique - Pompe huile
(1994 - 1998 | A)
| Pos. | Réf. | Qté | |
|---|---|---|---|
Boîte de vitesses, automatique | |||
| 1 | |||
| 2 | 5250469 93178305 Vis Usage: M5 x 17 | 1 | |
| 3 | 5255351 90399357 Vis Usage: M6 x 14,5 | 13 | |
| 4 | 5250444 Pièce intermédiaire | 1 | |
| 5 | 5250436 Pièce intermédiaire | 1 | |
| 6 | 5250477 90348756 Joint torique | 1 | |
| 7 | 5250287 Pignon de couronne plan Usage: repérage: F | 10,695MM | 1 | |
| 7 | 5250295 Pignon de couronne plan Usage: repérage: G | 10,705MM | 1 | |
| 7 | 5250303 Pignon de couronne plan Usage: repérage: H | 10,715MM | 1 | |
| 7 | 5250311 Pignon de couronne plan Usage: repérage: J | 10,725MM | 1 | |
| 7 | 5250329 Pignon de couronne plan Usage: repérage: K | 10,735MM | 1 | |
| 8 | 5250337 Pignon de couronne plan Usage: 10,692MM | 1 | |
| 8 | 5250345 Pignon de couronne plan Usage: 10,697MM | 1 | |
| 8 | 5250352 Pignon de couronne plan Usage: 10,702MM | 1 | |
| 8 | 5250360 Pignon de couronne plan Usage: 10,707MM | 1 | |
| 8 | 5250378 Pignon de couronne plan Usage: 10,712MM | 1 | |
| 8 | 5250386 Pignon de couronne plan Usage: 10,717MM | 1 | |
| 8 | 5250394 Pignon de couronne plan Usage: 10,722MM | 1 | |
| 8 | 5250402 Pignon de couronne plan Usage: 10,727MM | 1 | |
| 8 | 5250410 Pignon de couronne plan Usage: 10,732MM | 1 | |
| 8 | 5250428 Pignon de couronne plan Usage: 10,737MM | 1 | |
| 9 | 5250451 Goujon guidage | 1 | |
| 10 | 5250279 Pompe huile | 1 | |
| 11 | 4491130 90399359 Vis Usage: M8 x 28 | 8 | |
| 12 | 4491171 93178232 Joint | 1 | |
| 13 | Frein B4 | 1 |
