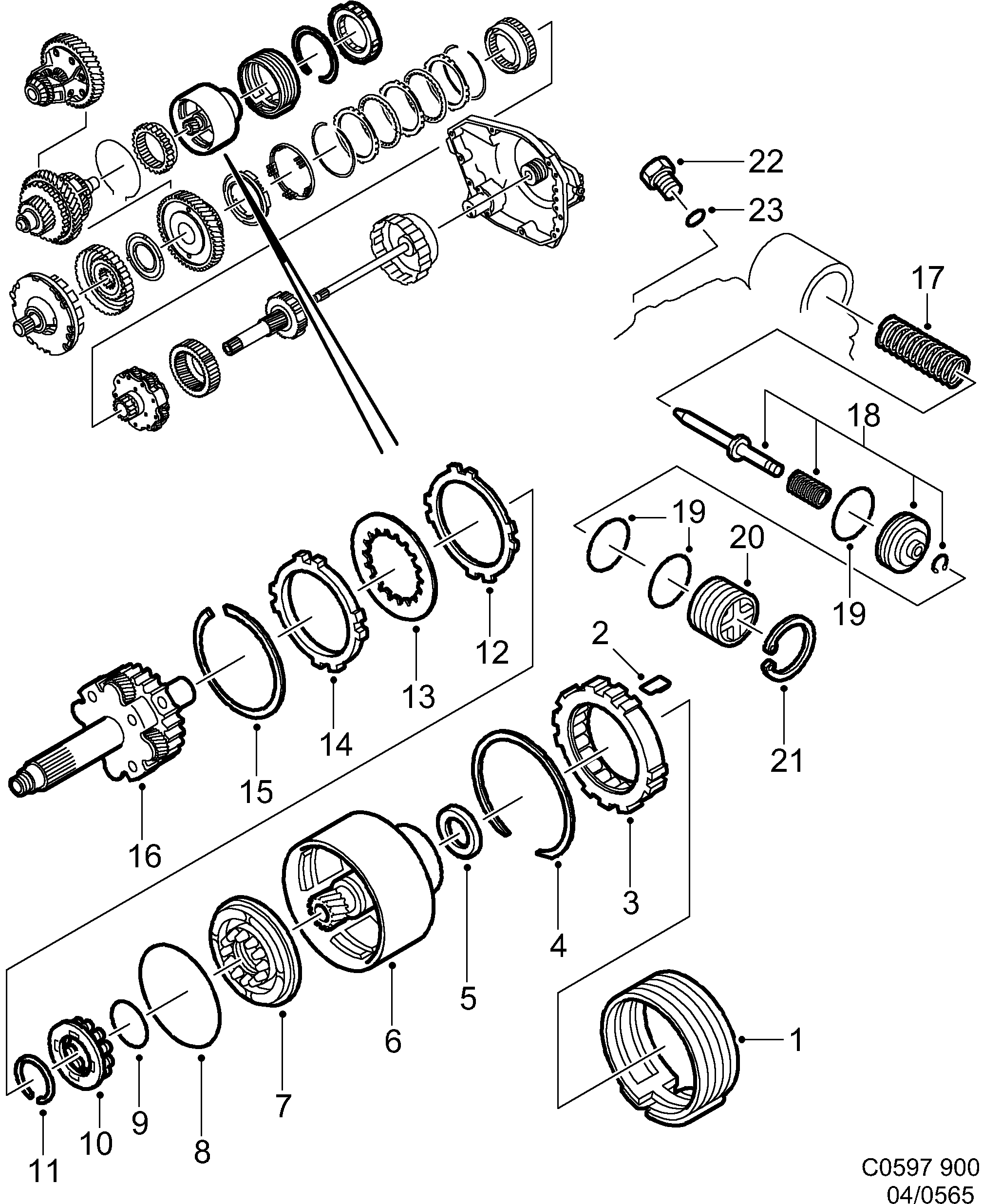

565: Transmission - Boîte de vitesses, automatique - Coupleur C3 et roue libre F3 - Frein B4
(1994 - 1998 | A, M)
| Pos. | Réf. | Qté | |
|---|---|---|---|
Boîte de vitesses, automatique | |||
| 1 | 5251210 Ruban frein | 1 | |
| 2 | 5251194 Retenue | 1 | |
| 3 | 5251202 Embrayage | 1 | |
| 4 | 5251186 Anneau verrouillage | 1 | |
| 5 | 5253695 5251061 Rondelle d'angl Usage: 1994-1996 | 1 | |
| 5 | 5253695 5251061 Rondelle d'angl Usage: 1997-1998 | B204L | 1 | |
| 5 | 5253695 5251061 Rondelle d'angl Usage: 1997-1997 | B234I | MARKED: FA 46805 | 1 | |
| 5 | 5251061 Rondelle d'angl Usage: 1997- | B234I | MARKED: FA 46807 | 1 | |
| 5 | 5251061 Rondelle d'angl Usage: 1997-1998 | B204I, B258I | 1 | |
| 6 | 5253596 Tambour | 1 | |
| 7 | 5253620 Piston | 1 | |
| 8 | 5251442 93178242 Joint torique | 1 | |
| 9 | 5253612 93178241 Joint torique | 1 | |
| 10 | 5250980 90348847 Ressort rappel | 1 | |
| 11 | 5250972 90348849 Anneau verrouillage | 1 | |
| 12 | 5251475 90348787 Plaque Usage: B204I, B204L, B258I | 4 | |
| 12 | 5251475 90348787 Plaque Usage: -1997 | B234I | 4 | |
| 12 | 5255617 Plaque Usage: 1997- | B234I | MARKED: FA 46807 | 4 | |
| 13 | 5253315 Disque Usage: B204L, B234I, B258I | 4 | |
| 13 | 5253398 Disque Usage: B204I | 4 | |
| 14 | 5253653 Disque Usage: 3,6MM | 1 | |
| 14 | 5253661 Disque Usage: 3,8MM | 1 | |
| 14 | 5253679 Disque Usage: 4,0MM | 1 | |
| 15 | 5253687 90348777 Anneau verrouillage | 1 | |
| 16 | Train planétaire | 1 | |
| 17 | 5251251 Ressort pression | 1 | |
| 18 | 5253729 Piston Usage: L=70.5MM | 1 | |
| 18 | 5253737 Piston Usage: L=72MM | 1 | |
| 19 | 5253711 Joint torique | 3 | |
| 20 | 5253745 Couvercle | 1 | |
| 21 | 5253752 Anneau verrouillage | 1 | |
| 22 | 5251285 93185203 Tampon | 1 | |
| 23 | 5164421 90348863 Joint torique | 1 |
