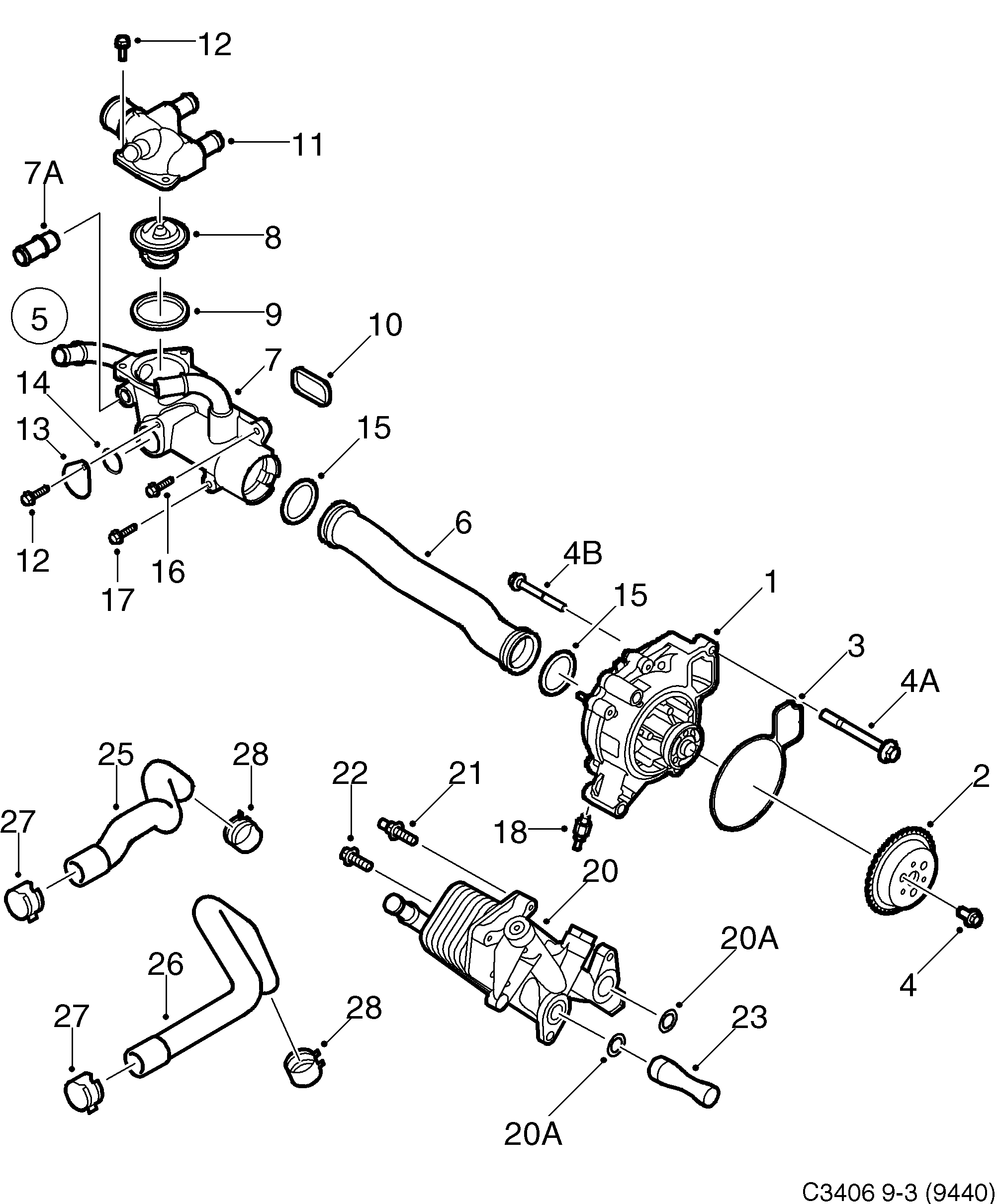

5800: Moteur - Système de refroidissement - Pompe de refroidissement - Thermostat
(2003 - 2011 | B207)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 24467301 12630084 Pompe à liquide de refroidissement Usage: 2003-2003 | 1 | |
| 1 | 93178602 12630084 Pompe à liquide de refroidissement Usage: 2004-2004 | 1 | |
| 1 | 93181118 12630084 Pompe à liquide de refroidissement Usage: 2005-2007 | 1 | |
| 1 | 93195308 12630084 Pompe à eau Usage: 2008-2008 | 1 | |
| 1 | 12621284 12630084 Pompe à eau Usage: 2009-2009 | 1 | |
| 1 | 12630084 Pompe à eau Usage: 2010-2011 | 1 | |
| 2 | 90537298 Pignon chaîne | 1 | |
| 3 | 24439799 Joint | 1 | |
| 4 | 11518061 Vis | 3 | |
12586573 Tampon Usage: 2008-2011 | 3 | ||
| 4A | 11518057 Vis | 1 | |
| 4B | 11518052 Vis | 2 | |
| 5 | 12790477 Boîtier thermostat Usage: Ensemble | 1 | |
| 6 | 90490640 Tuyau | 1 | |
| 7 | 12791053 Boîtier thermostat | 1 | |
| 7A | 12755186 Pièce connexion | 1 | |
| 8 | 90537811 12622410 Thermostat Usage: 2003-2008 | 1 | |
| 8 | 12615097 12622410 Thermostat Usage: 2009-2011 | 1 | |
| 9 | 3522676 Joint | 1 | |
| 10 | 90537471 Joint | 1 | |
| 11 | 12790474 Couvercle | 1 | |
| 12 | 11518062 Vis | 4 | |
| 13 | 12789738 Rondelle étanchéité | 1 | |
| 14 | 12789739 Joint torique | 1 | |
| 15 | 90537379 Joint torique | 2 | |
| 16 | 11518063 Vis | 2 | |
| 17 | 11900171 Vis | 1 | |
| 18 | 12797058 Robinet vidange | 1 | |
| 20 | 12786259 Radiateur huile Usage: -2007 | 1 | |
| 20 | 55565996 Radiateur huile Usage: 2007- | 1 | |
| 20A | 93181988 Jeu joint toriques Usage: -2007 | 1 | |
| 20A | 12601372 Joint Usage: 2007- | 1 | |
| 20A | 12601371 Joint Usage: 2007- | 1 | |
| 21 | 12794256 Goujon | 1 | |
| 22 | 11518049 Vis Usage: -2007 | 2 | |
| 22 | 11588724 Vis Usage: 2007- | 2 | |
11588327 Douille Usage: 2007- | 3 | ||
| 23 | 12790785 Tuyau | 1 | |
| 25 | 12786237 Flexible Usage: -2007 | 1 | |
| 25 | 55565997 Flexible Usage: 2007- | 1 | |
| 26 | 12786238 Flexible Usage: -2007 | 1 | |
| 26 | 55565998 Flexible Usage: 2007- | 1 | |
| 27 | 90573605 Collier serrage Usage: 2003-2006 | 2 | |
| 27 | 90572594 Collier serrage Usage: 2007-2011 | 2 | |
| 28 | 90537612 90572592 Collier serrage Usage: 2003-2006 | 2 | |
| 28 | 90572592 Collier serrage Usage: 2007-2011 | 2 | |
| 28 | 13283239 Collier serrage Usage: 2010-2011 | B207R | Carburant mixte | 2 |
