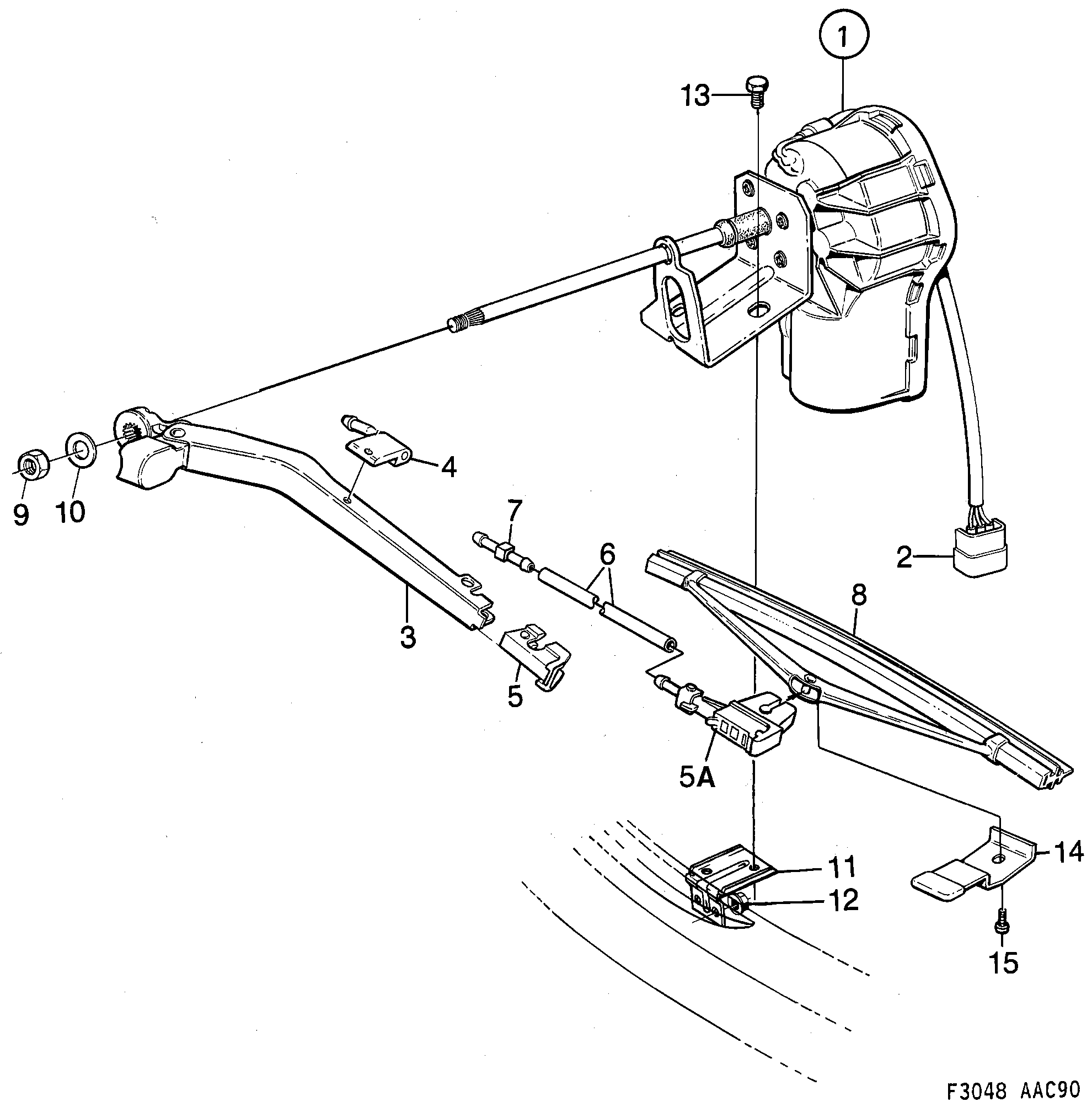

650: Système électrique, généralités - Autre équipement électrique - Essuie-phare
(1990 - 1993)
Concerne aussi CV 1994
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9556200 Moteur essuie-glace Usage: 1990-1990 | LH | 1 | |
| 1 | 9556218 Moteur essuie-glace Usage: 1990-1990 | RH | 1 | |
| 1 | 4095790 Moteur essuie-glace Usage: 1991-1993 | LH | 1 | |
| 1 | 4095816 Moteur essuie-glace Usage: 1991-1993 | RH | 1 | |
| 1 | 4093126 Moteur essuie-glace Usage: 1991-1993, LHD | LH | 1 | |
| 1 | 4093134 Moteur essuie-glace Usage: 1991-1993, LHD | RH | 1 | |
| 2 | 9503327 Boîtier contact Usage: 1990-1990 | 3-poles, broche | 1 | |
| 2 | 9503327 Boîtier contact Usage: 1991-1991 | 3-poles, broche | 1 | |
| 2 | 9503327 Boîtier contact Usage: 1992-1993 | 3-poles, broche | 1 | |
| 3 | 9556291 Bras essuie-glace Usage: LH | 1 | |
| 3 | 9556283 Bras essuie-glace Usage: RH | 1 | |
| 3 | 9564303 Bras essuie-glace Usage: LHD | LH | 1 | |
| 3 | 9564295 Bras essuie-glace Usage: LHD | RH | 1 | |
| 4 | 9509126 30526009 Gicleur Usage: LH | 1 | |
| 4 | 9509118 30526008 Gicleur Usage: RH | 1 | |
| 5 | 9558149 Raccord | 1 | |
| 5A | 9123225 Raccord Usage: LHD | LH | 1 | |
| 5A | 9123217 Raccord Usage: LHD | RH | 1 | |
| 6 | 4254603 Flexible Usage: LHD | L=130 MM | 1 | |
| 7 | 4014783 Tuyau raccord Usage: LHD | 1 | |
| 8 | 9120882 30520558 Lame essuie-glace | 2 | |
| 9 | 8029548 Ecrou | 2 | |
| 10 | 7972284 Rondelle | 2 | |
| 11 | 9556242 Console | 2 | |
| 12 | 7971658 11900428 Ecrou | 4 | |
| 13 | 8019895 Vis Usage: 1990-1992 | 4 | |
| 13 | 9166273 Vis Usage: 1993-1993 | 4 | |
| 14 | 9551219 Butée | 2 | |
| 15 | 7922800 Vis | 2 | |
8547408 Garniture essuie-glace | X |
