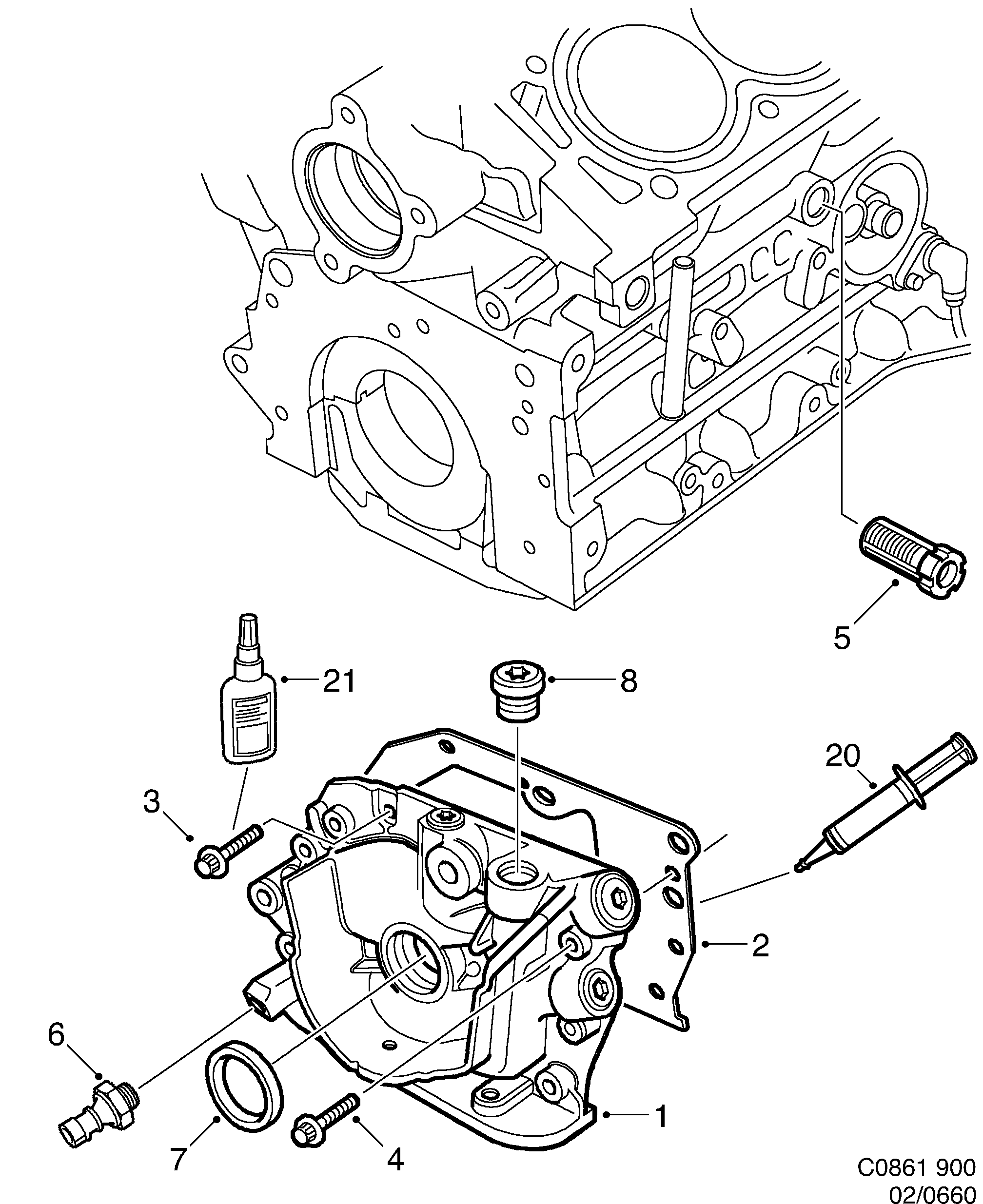

660: Moteur - Système de graissage - Pompe huile
(1994 - 1997 | 6-CYL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 4502241 90571901 Pompe huile Usage: 1994-1996 | 1 | |
| 1 | 4770731 90571901 Pompe huile Usage: 1997-1997 | 1 | |
| 2 | 4502258 90572461 Joint Usage: 1994-1996 | 1 | |
| 2 | 4770749 90572461 Joint Usage: 1997-1997 | 1 | |
| 3 | 4502274 11093872 Vis Usage: 1994-1996 | 1 | |
| 3 | 11096451 Vis Usage: 1997-1997 | (4773461) | 1 | |
| 4 | 4500732 11093782 Vis | 5 | |
| 5 | 4500419 90136113 Soupape by-pass | 1 | |
| 6 | 4504585 Manocontact huile Usage: 1994-1995 | 1 | |
| 6 | 4770186 55354378 Manocontact huile Usage: 1996-1997 | 1 | |
| 7 | 90322669 Joint Usage: (46 22 296) | 1 | |
| 8 | 4502290 55350692 Obturateur à vis | 1 | |
| 20 | 90297970 Instajoint Usage: 50 ML | X | |
| 21 | 7496268 Le freinage des filetages Usage: normal bleu | 50 ML | X |
