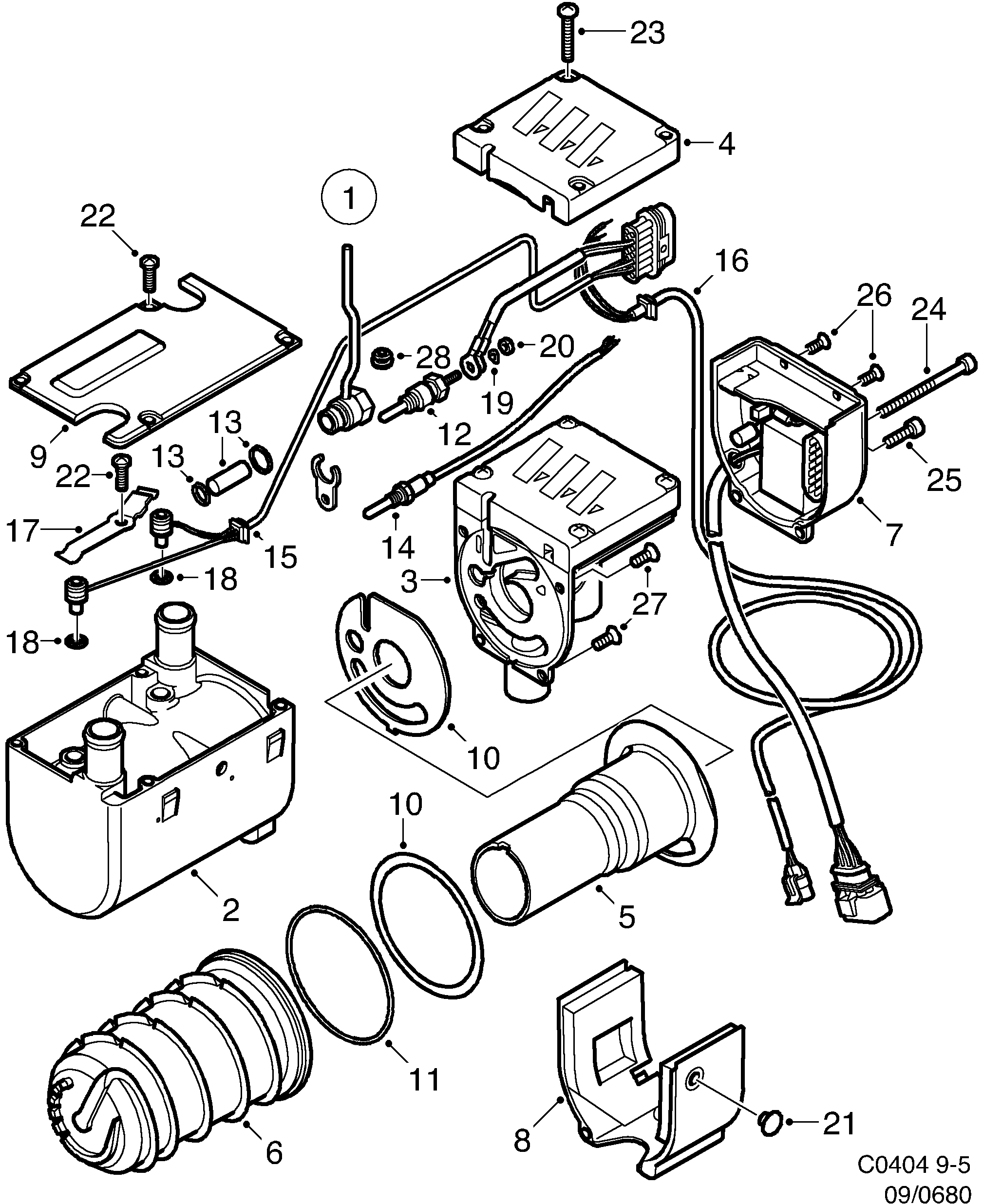

680: Accessoire - Accessoire carrosserie - Climatiseur - Chaufferette
(1998 - 2006)
Pas pour Bio Power
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 400106795 Chaufferette | 1 | |
| 2 | 400128195 Enveloppe | 1 | |
| 3 | 400128203 Ventilateur | 1 | |
| 4 | 400128211 Couvercle | 1 | |
| 5 | 400128229 Brûleur | 1 | |
| 6 | 400128237 Dépose/reposeur chaleur | 1 | |
| 7 | 400128245 Unité commande | 1 | |
| 8 | 400128252 Capot | 1 | |
| 9 | 400128260 Couvercle | 1 | |
| 10 | 400128278 93173004 Joint Usage: 1998-2001 | 1 | |
| 10 | 5463294 93173004 Joint Usage: 2002-2006 | 1 | |
| 11 | 400128286 90541155 Joint torique Usage: 1998-2005 | 1 | |
| 11 | 90541155 Joint torique Usage: 2005-2006 | 1 | |
| 12 | 400128294 Bougie préchauffage | 1 | |
| 13 | 400128302 Chemise | 1 | |
| 14 | 400128310 Témoin flamme | 1 | |
| 15 | 400128328 Faisceau de câblage | 1 | |
| 16 | 400128336 Faisceau de câblage | 1 | |
| 17 | 400128344 Etrier | 1 | |
| 18 | 4967170 93173067 Joint torique | 2 | |
| 19 | 5190921 Rondelle élastique | 1 | |
| 20 | 5190939 Ecrou | 1 | |
| 21 | 400128351 Capot | 1 | |
| 22 | 5190947 93173060 Vis Usage: 1998-2005 | 5 | |
| 22 | 93173060 Vis Usage: 2006-2006 | 5 | |
| 23 | 4967196 93173065 Vis Usage: 1998-2005 | 4 | |
| 23 | 93173065 Vis Usage: 2006-2006 | 4 | |
| 24 | 4967204 93173062 Vis Usage: 1998-2005 | 1 | |
| 24 | 93173062 Vis Usage: 2006-2006 | 1 | |
| 25 | 4967212 93173064 Vis Usage: 1998-2005 | 1 | |
| 25 | 93173064 Vis Usage: 2006-2006 | 1 | |
| 26 | 4967220 93173063 Vis Usage: 1998-2005 | 2 | |
| 26 | 93173063 Vis Usage: 2006-2006 | 2 | |
| 27 | 5190954 93173061 Vis Usage: 1998-2005 | 3 | |
| 27 | 93173061 Vis Usage: 2006-2006 | 3 | |
| 28 | 4967436 Passe-câble | 1 |
