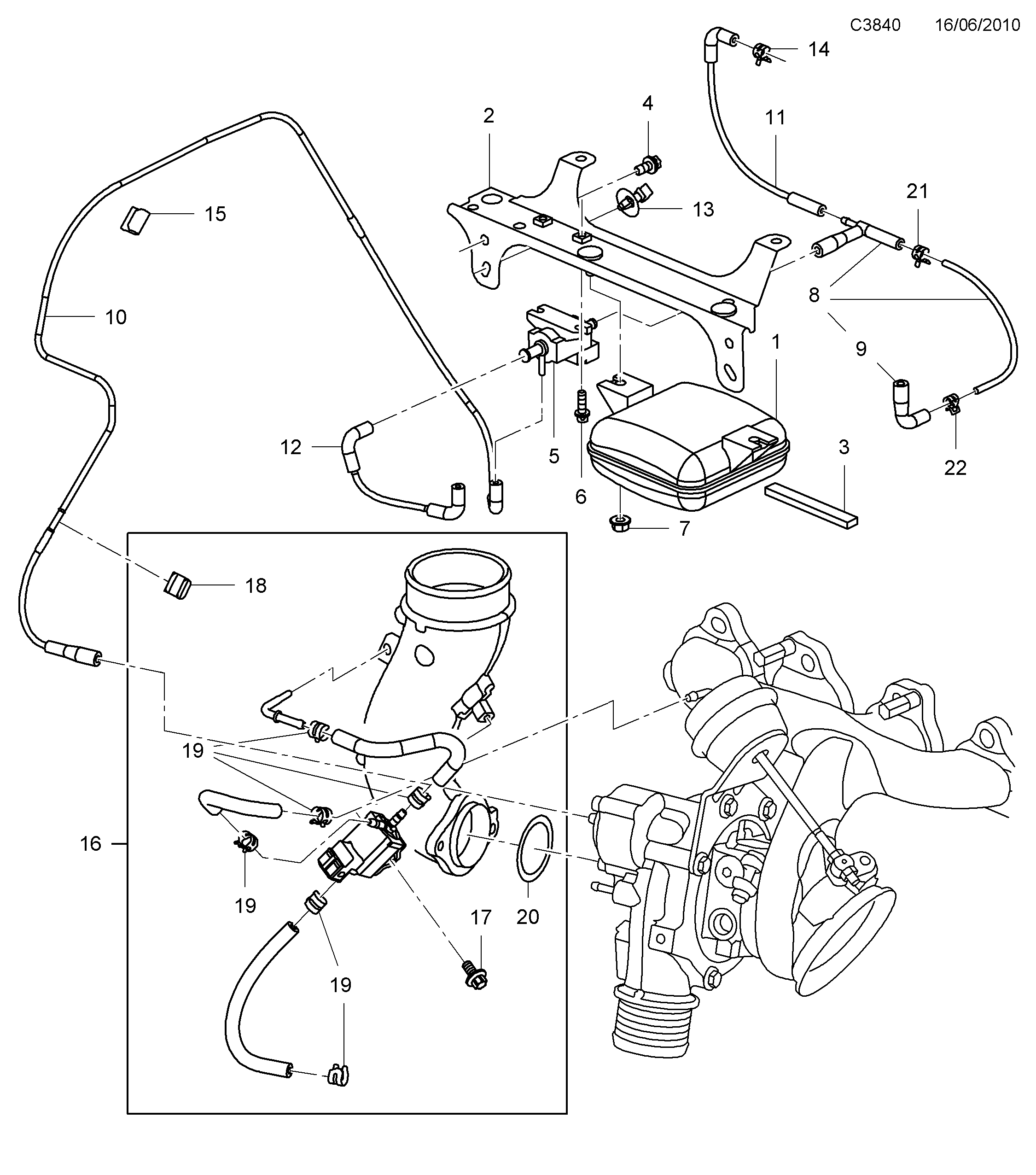

7195: Moteur - Système de suralimentation - Système à vide
(2011 | A16LET,4-CYL,TURBO,4-CYL TURBO,PETROL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 90502721 Réservoir vide | 1 | |
| 2 | 55564761 Fixation | 1 | |
| 3 | 90424424 Isolant Usage: Reservoir a depression a support de collecteur d'admission | 1 | |
| 4 | 11093971 Vis Usage: M6X12 | 4 | |
| 5 | 55557829 Soupape | 1 | |
| 6 | 11097862 Vis Torx Usage: M5x16 | 2 | |
| 7 | 11094425 Écrou, auto-bloquant | 2 | |
| 8 | 55556020 Tuyau | 1 | |
| 9 | 55562187 Tuyau coude | 1 | |
| 10 | 55564497 Tube dépression | 1 | |
| 11 | 55556021 Tuyau | 1 | |
| 12 | 55556019 Tuyau | 1 | |
| 13 | 55354536 Agrafe | 1 | |
| 14 | 55564197 Serre-câble Usage: 10MM | 1 | |
| 15 | 55567992 Agrafe | 1 | |
| 16 | 55564496 Raccord | 1 | |
| 17 | 11093973 Vis Torx Usage: M6X12 | 1 | |
| 18 | 55567758 Agrafe | 1 | |
| 19 | 55573074 Serre-câble Usage: 10MM | 1 | |
| 20 | 55567764 Joint | 1 | |
| 21 | 55572038 Serre-câble | 1 | |
| 22 | 55572035 Serre-câble Usage: 9MM | 1 |
