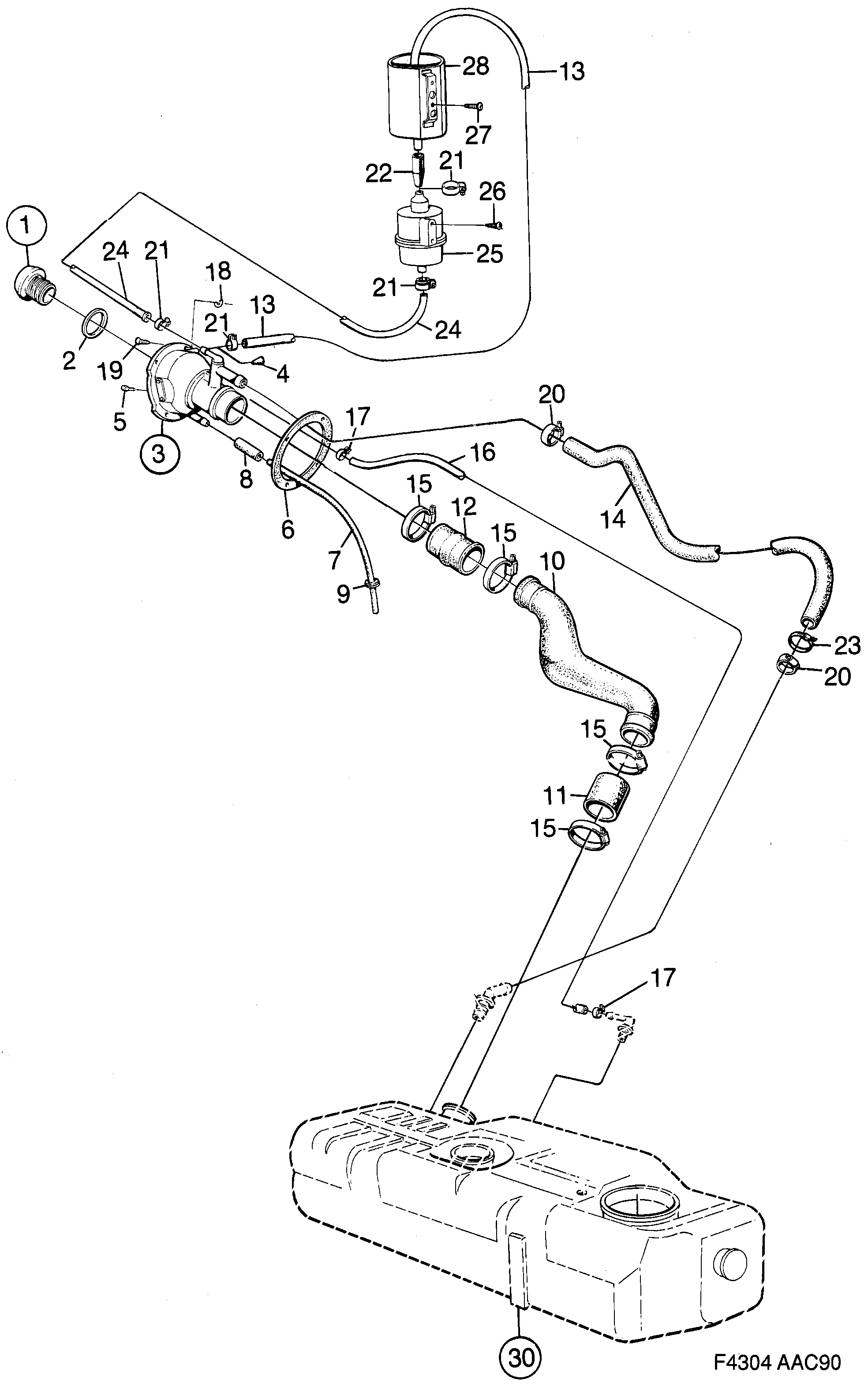

740: Moteur - Système de carburant - Tube remplissage - Flexible
(1990 - 1993)
Concerne aussi CV 1994
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 8982209 4391058 Bouchon réservoir | 1 | |
| 2 | 7511751 Joint | 1 | |
| 3 | 7530553 Tube remplissage Usage: Sans catalyseur. | 1 | |
| 3 | 9335118 Tube remplissage Usage: Avec catalyseur. | 1 | |
| 4 | 7536840 Tampon plastique Usage: ELCD | 1 | |
| 5 | 8315475 Butée | 2 | |
| 6 | 9349838 Joint | 1 | |
| 7 | 8323941 Tuyau drainage | 1 | |
| 8 | 9363284 Flexible Usage: L=52 MM | 1 | |
| 9 | 7961329 Bague | 1 | |
| 10 | 8982498 Tube remplissage Usage: -1991 | 1 | |
| 10 | 4158069 Tube remplissage Usage: 1991- | 1 | |
| 11 | 7525421 Flexible | 1 | |
| 12 | 7525439 Flexible Usage: -1990 | 1 | |
| 12 | 7525421 Flexible Usage: 1990- | 1 | |
| 13 | 7528920 Flexible | 1 | |
| 13 | 7528912 Flexible | 1 | |
| 13 | 4019345 Câble | 1 | |
| 14 | 7539133 Flexible | 1 | |
| 15 | 7970130 92153077 Collier serrage | 4 | |
| 16 | 4018354 Flexible | 1 | |
| 17 | 8332587 Collier serrage | 2 | |
| 18 | 8978371 Ecrou | 4 | |
| 19 | 7970536 92150118 Vis | 4 | |
| 20 | 7970072 Collier serrage | 2 | |
| 21 | 7968308 Collier serrage | 4 | |
| 22 | 8334880 Flexible | 1 | |
| 23 | 7971872 Ruban serrage | 1 | |
| 24 | 7539976 Flexible | 1 | |
| 24 | 9363243 Flexible | 1 | |
| 25 | 9318361 Soupape | 1 | |
| 26 | 7922347 Vis Usage: 1990-1990 | 2 | |
| 26 | 7977416 7922347 Vis Usage: 1991-1993 | 2 | |
| 27 | 7972359 7922800 Vis | 2 | |
| 28 | 8333007 Capot protection | 1 | |
| 30 | VOIR SECTION RESERVOIR DE CARBURANT | ||
9362781 Flexible Usage: L=10M | X |
