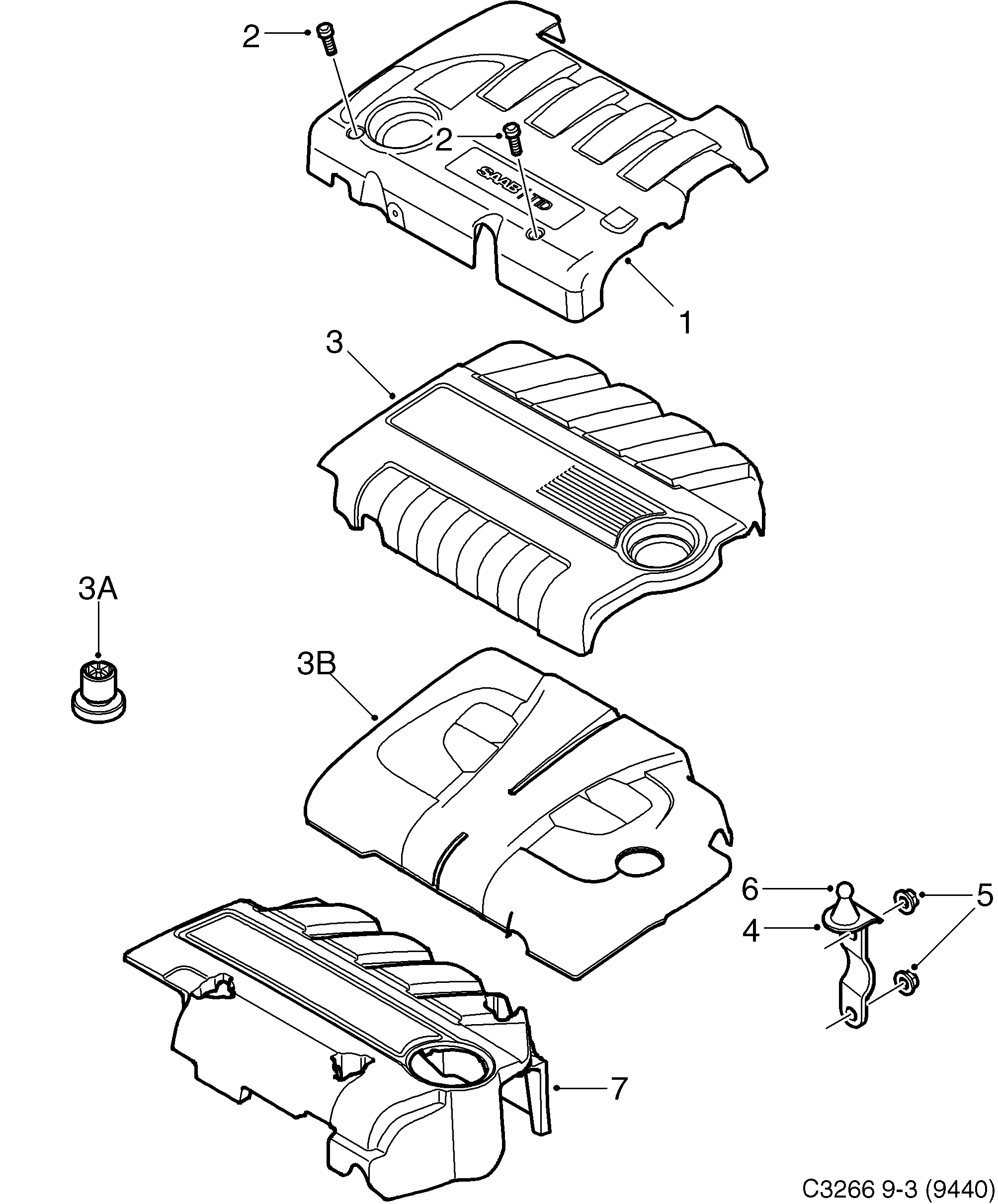

| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 55555630 Capot moteur Usage: 2005-2005 | Z19DT | 1 | |
| 1 | 55560232 Capot Usage: 2006-2010 | Z19DT | 1 | |
| 2 | 92152043 Vis Usage: 2005-2010 | Z19DT | 2 | |
55570330 Boulon Usage: 2008-2011 | Z19DTR, A19DTR | 1 | ||
| 3 | 55556364 Capot moteur Usage: 2005-2010 | Z19DTH | 1 | |
| 3A | 24453627 Retenue Usage: 2005-2010 | Z19DTH | Bague caoutchouc | 4 | |
| 3B | 55562522 Couverture Usage: 2008-2008 | Z19DTR | 1 | |
| 3B | 55562704 Tapis isolant Usage: 2009-2011 | Z19DTR, A19DTR | 1 | |
| 4 | 55353562 Console Usage: 2005-2010 | Z19DTH | 1 | |
| 5 | 11900451 Ecrou Usage: 2005-2010 | Z19DTH | 2 | |
| 6 | 12992539 55560110 Boulon articulation Usage: 2005-2005 | Z19DTH | 3 | |
| 6 | 55560110 Boulon articulation Usage: 2006-2011 | Z19DTH, Z19DTR, A19DTR | 3 | |
| 7 | 55560862 55568726 Isolant Usage: 2005-2008 | Z19DTH | 1 | |
| 7 | 55568726 Isolant Usage: 2009-2009 | Z19DTH | 1 |
