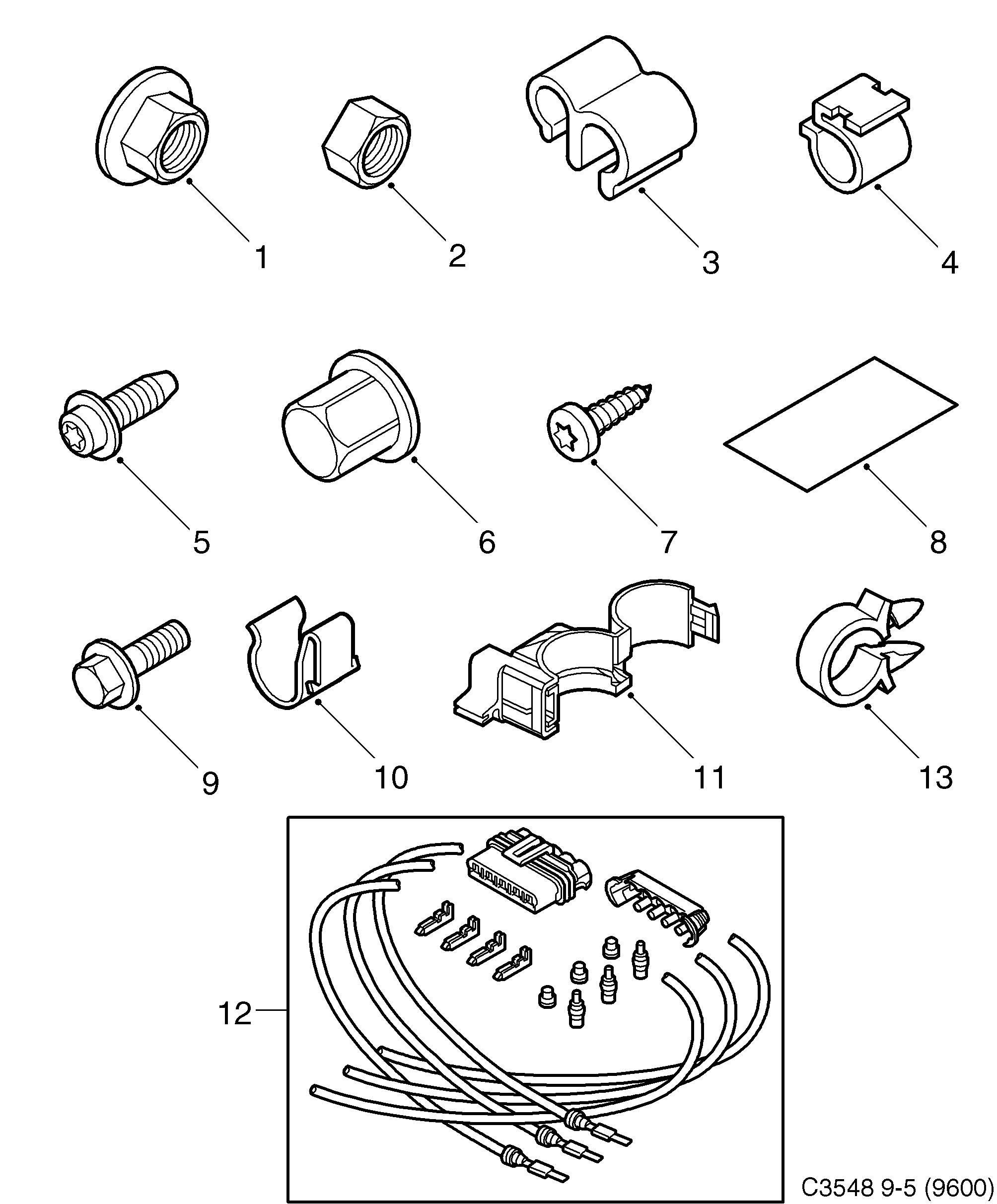

934: Système électrique, généralités - Conduites et fusibles - Bagues, vis, colliers, etc - colliers de serrage, etc
(1998 - 2010)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7977952 11900452 Ecrou hexagonal Usage: M8 | X | |
| 1 | 92150133 11900451 Ecrou Usage: 1998-2006 | M6 | X | |
| 1 | 11900451 Ecrou Usage: 2007-2010 | M6 | X | |
| 1 | 4348637 11900439 Ecrou Usage: 1998-2006 | Faisceau de câbles, tableau de bord | M6 | X | |
| 1 | 11900439 Ecrou Usage: 2007-2010 | Faisceau de câbles, tableau de bord | M5 | X | |
| 1 | 7974298 92153044 Ecrou Usage: M6 | X | |
| 1 | 4087664 92151935 Ecrou Usage: M6 | X | |
| 1 | 11900451 Ecrou Usage: Capteur de température d'échappement | M6 | X | |
| 1 | 7977911 32026207 Ecrou Usage: M5 | X | |
| 1 | 11900445 Ecrou Usage: 2008-2010 | Avant câblage | M6 | 1 | |
| 2 | 7985377 Ecrou Usage: M6 | X | |
| 2 | 92150596 92151925 Ecrou Usage: M6 | X | |
| 2 | 92152037 Ecrou Usage: 2004-2007 | câblage avant | M6X18 | X | |
| 2 | 92152035 Ecrou Usage: 2008-2010 | câblage avant | X | |
| 3 | 9106139 12793419 Collier | X | |
| 3 | 12793419 Collier serrage | X | |
| 4 | 7156409 Collier serrage Usage: câblage | X | |
| 4 | 4464483 Collier serrage Usage: câblage pare-chocs | X | |
| 5 | 7978372 11900378 Vis Usage: M5X12 | X | |
| 6 | 4087128 92152035 Ecrou plastique | X | |
| 7 | 7977002 92153006 Vis Usage: ST4,8X19 | X | |
| 8 | 4948808 Ruban adhésif Usage: protecteur antibruit | X | |
| 8 | 5014766 Feutre anti-grincement Usage: Système de navigation | X | |
| 8 | 4242087 Plaque entretoise Usage: protecteur antibruit | X | |
| 8 | 12785155 Ruban adhésif Usage: 2006-2010 | Faisceau de câbles, tableau de bord | X | |
| 9 | 7977465 92153149 Vis Usage: 4,8 x 19 | X | |
| 9 | 7982366 Vis Usage: M6X10 | X | |
| 9 | 92153146 Vis Usage: M6X12 | X | |
| 9 | 11900353 Vis Usage: M6X12 | X | |
| 9 | 11900357 Vis Usage: M6X30 | X | |
| 9 | 92150012 Vis Usage: M8X16 | X | |
| 9 | 32000275 Vis Usage: M6X12 | X | |
| 9 | 4573309 Vis Usage: M8 x 13,3 | X | |
| 9 | 11900364 Vis Usage: 2009-2010 | Câble batterie | M8X16 | X | |
| 10 | 9383043 12755295 Collier serrage Usage: 1998-2006 | câblage | X | |
| 10 | 12755295 Collier serrage Usage: 2007-2010 | câblage | X | |
| 10 | 4504924 9128519 Clip Usage: 1998-1999 | B308E | Carter distribution | X | |
| 10 | 4773974 9128519 Clip Usage: 2000-2004 | B308E, D308L | Carter distribution | X | |
| 11 | 4808275 Clip Usage: 1998-2002, RHD | pédalier | 1 | |
| 11 | 4899837 Collier serrage Usage: TIRE PRESSURE MONITORING SYSTEM | 1 | |
| 12 | 93189918 Boîtier de connecteur Usage: 2007-2010 | Avec extrémités de fil 50cm | X | |
| 13 | 92150209 11900515 Collier serrage Usage: 2004-2010 | câblage avant | 1 |
