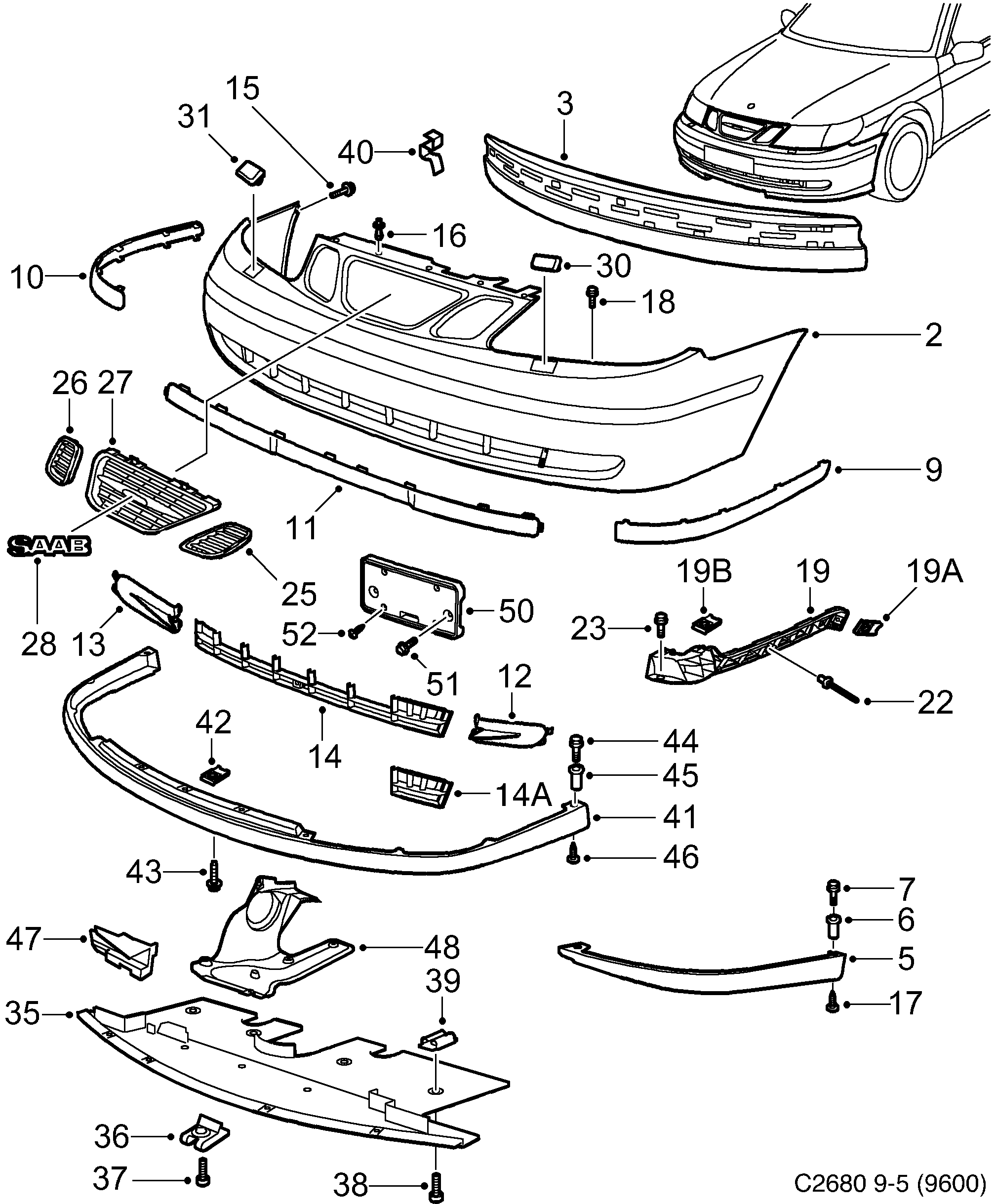

942: Carrosserie, extérieur - Pare-chocs - Pare-chocs, avant
(2002 - 2003)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 2 | 5409388 Gaine Usage: Modèle pouvant être peint | 1 | |
| 3 | 5142468 Partie moussant | 1 | |
| 5 | 4560991 Spoiler Usage: noir | LH | 1 | |
| 5 | 4561007 Spoiler Usage: noir | RH | 1 | |
| 6 | 9087040 Ecrou | 2 | |
| 7 | 7978109 11900354 Vis | 4 | |
| 9 | 5142914 Enjoliveur Usage: LH | 1 | |
| 10 | 5142922 Enjoliveur Usage: RH | 1 | |
| 11 | 5142906 Enjoliveur | 1 | |
| 12 | 5142880 Grille Usage: phare antibrouillard | LH | 1 | |
| 13 | 5142898 Grille Usage: phare antibrouillard | RH | 1 | |
| 14 | 5142443 Grille Usage: Prise air | 1 | |
| 14A | 5581384 Grille Usage: 2003- | D308L | Prise air | LH | 1 | |
| 14A | 5581392 Grille Usage: 2003- | D308L | Prise air | RH | 1 | |
| 15 | 7972979 92151995 Vis Usage: 25 mm | 2 | |
| 15 | 7972946 92150102 Vis Usage: 16 mm | 2 | |
| 16 | 4681565 92152011 Rivet | 5 | |
| 17 | 7978653 92151891 Vis | 2 | |
| 18 | 7978661 Vis à tête hexagonale | 6 | |
| 19 | 5142989 5495049 Barre fixation Usage: -2003 | LH | 1 | |
| 19 | 5495049 Barre fixation Usage: 2003- | LH | 1 | |
| 19 | 5142997 5495056 Barre fixation Usage: -2003 | RH | 1 | |
| 19 | 5495056 Barre fixation Usage: 2003- | RH | 1 | |
| 19A | 8267098 Clip | 2 | |
| 19B | 4481230 Clip | 2 | |
| 22 | 4830154 Rivet | 6 | |
| 23 | 7984305 92152130 Vis à tête hexagonale | 2 | |
| 25 | 5289699 5336151 Grille Usage: -2002 | LH | 1 | |
| 25 | 5336151 Grille Usage: 2002- | LH | 1 | |
| 26 | 5289707 5336169 Grille Usage: -2002 | RH | 1 | |
| 26 | 5336169 Grille Usage: 2002- | RH | 1 | |
| 27 | 5289681 Grille | 1 | |
| 28 | 4830071 Emblème | 1 | |
| 30 | 5409404 Couvercle Usage: Modèle pouvant être peint | LH, SRA | 1 | |
| 31 | 5409412 Couvercle Usage: Modèle pouvant être peint | RH, SRA | 1 | |
| 35 | 5410527 Ecran air Usage: -2002 | 1 | |
| 35 | 5404462 5496419 Ecran air Usage: 2002- | 1 | |
| 36 | 7967995 Ecrou d'agrafe | 4 | |
| 37 | 7977465 92153149 Vis | 4 | |
| 38 | 7972946 92150102 Vis | 4 | |
| 39 | 8238305 Clip Usage: -2003 | 4 | |
| 39 | 5125950 92152304 Clip Usage: 2003- | 4 | |
| 40 | 5141445 Clip | 2 | |
| 41 | 4676250 5491535 Spoiler Usage: -2003 | Modèle pouvant être peint Option sport extérieur | AERO | 1 | |
| 41 | 5491535 Spoiler Usage: 2003- | Modèle pouvant être peint Option sport extérieur | AERO | 1 | |
| 42 | 9236753 Clip Usage: Option sport extérieur | AERO | 3 | |
| 43 | 7978661 Vis à tête hexagonale Usage: Option sport extérieur | AERO | 3 | |
| 44 | 7978109 11900354 Vis Usage: Option sport extérieur | AERO | 4 | |
| 45 | 9087040 Ecrou Usage: Option sport extérieur | AERO | 4 | |
| 46 | 7978653 92151891 Vis Usage: Option sport extérieur | AERO | 2 | |
| 47 | Ecran air Usage: B205, B235, D223L | ||
| 47 | Ecran air Usage: B308E, D308L | ||
| 48 | Protection Usage: B205, B235, D223L | ||
| 48 | Protection Usage: B308E, D308L | ||
| 50 | 5289095 12786338 Support Usage: -2003 | 1 | |
| 50 | 5409669 12786338 Support Usage: 2003- | 1 | |
| 51 | 7922438 Vis | 4 | |
| 52 | 7970601 92153219 Vis | 4 |
