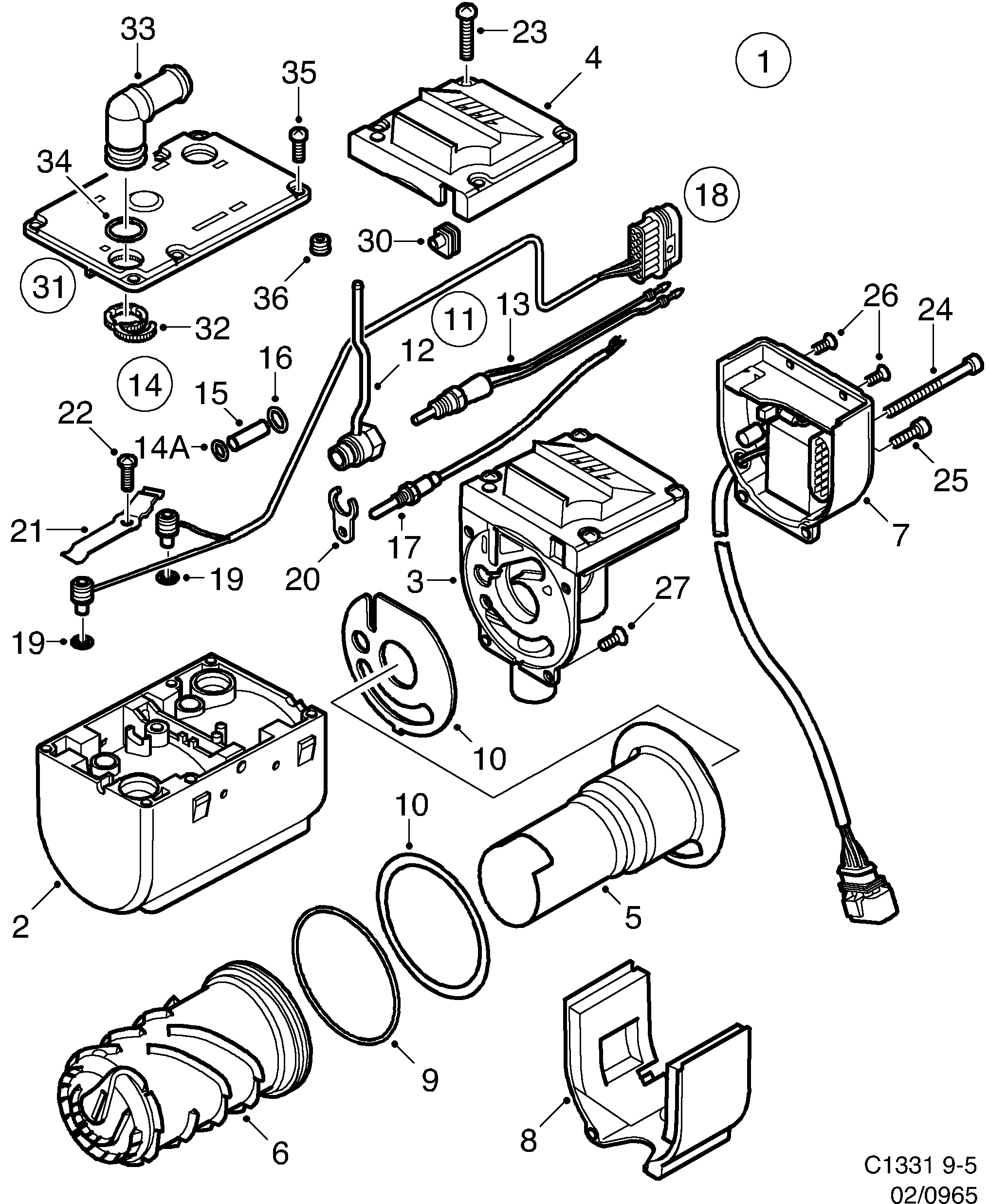

965: Moteur - Système de refroidissement - Réchauffeur auxiliaire - Dechauffeur
(2002 - 2005 | 4-CYL,DIESEL, 6-CYL,DIESEL)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 5322821 Dechauffeur | 1 | |
| 2 | 5460019 Capot | 1 | |
| 3 | 5460076 Ventilateur | 1 | |
| 4 | 5460084 93173013 Couvercle Usage: 2002-2004 | 1 | |
| 4 | 93173013 Couvercle Usage: 2005-2005 | 1 | |
| 5 | 5460035 93173002 Brûleur Usage: 2002-2004 | 1 | |
| 5 | 93173002 Brûleur Usage: 2005-2005 | 1 | |
| 6 | 5460001 93173001 Dépose/reposeur chaleur Usage: 2002-2004 | 1 | |
| 6 | 93173001 Dépose/reposeur chaleur Usage: 2005-2005 | 1 | |
| 7 | 5460027 Unité commande | 1 | |
| 8 | 5460142 93171128 Capot Usage: 2002-2004 | 1 | |
| 8 | 93171128 Capot Usage: 2005-2005 | 1 | |
| 9 | 4967139 90541155 Joint torique | 1 | |
| 10 | 5463294 93173004 Joint | 1 | |
| 11 | 5460068 Bougie préchauffage | 1 | |
| 12 | 5462189 Raccordement carburant | 1 | |
| 13 | 5461603 Bougie préchauffage | 1 | |
| 14 | 93174508 Joint torique Usage: kit | 1 | |
| 14A | 5462213 Joint torique Usage: Ø 9,25MM | 1 | |
| 15 | 5462197 Raccordement carburant | 1 | |
| 16 | 5462205 Joint torique Usage: Ø 11MM | 1 | |
| 17 | 5195144 90544230 Témoin flamme | 1 | |
| 18 | 5460050 93178431 Faisceau de câblage | 1 | |
| 19 | 4967170 93173067 Joint torique | 2 | |
| 20 | 5460092 93173006 Etrier | 1 | |
| 21 | 5460167 93173066 Support Usage: 2002-2004 | 1 | |
| 21 | 93173066 Support Usage: 2005-2005 | 1 | |
| 22 | 5190947 93173060 Vis Usage: 2002-2004 | 1 | |
| 22 | 93173060 Vis Usage: 2005-2005 | 1 | |
| 23 | 4967196 93173065 Vis Usage: 2002-2004 | 4 | |
| 23 | 93173065 Vis Usage: 2005-2005 | 4 | |
| 24 | 4967204 93173062 Vis Usage: 2002-2004 | 1 | |
| 24 | 93173062 Vis Usage: 2005-2005 | 1 | |
| 25 | 4967212 93173064 Vis Usage: 2002-2004 | 1 | |
| 25 | 93173064 Vis Usage: 2005-2005 | 1 | |
| 26 | 4967220 93173063 Vis Usage: 2002-2004 | 2 | |
| 26 | 93173063 Vis Usage: 2005-2005 | 2 | |
| 27 | 5190954 93173061 Vis Usage: 2002-2004 | 3 | |
| 27 | 93173061 Vis Usage: 2005-2005 | 3 | |
| 30 | 5460159 93173068 Douille | 1 | |
| 31 | 5460100 93173010 Couvercle | 1 | |
| 32 | 5460118 93173072 Rondelle Usage: 2002-2004 | 2 | |
| 32 | 93173072 Jeu joint toriques Usage: 2005-2005 | 2 | |
| 33 | 5460126 93173069 Raccord Usage: 2002-2004 | 2 | |
| 33 | 93173069 Raccord Usage: 2005-2005 | 2 | |
| 34 | 5460134 Joint torique | 2 | |
| 35 | 5461595 Vis | 4 | |
| 36 | 5462544 93173071 Raccordement carburant Usage: 2002-2004 | 1 | |
| 36 | 93173071 Raccordement carburant Usage: 2005-2005 | 1 | |
8252553 12780365 Clip | 2 |
