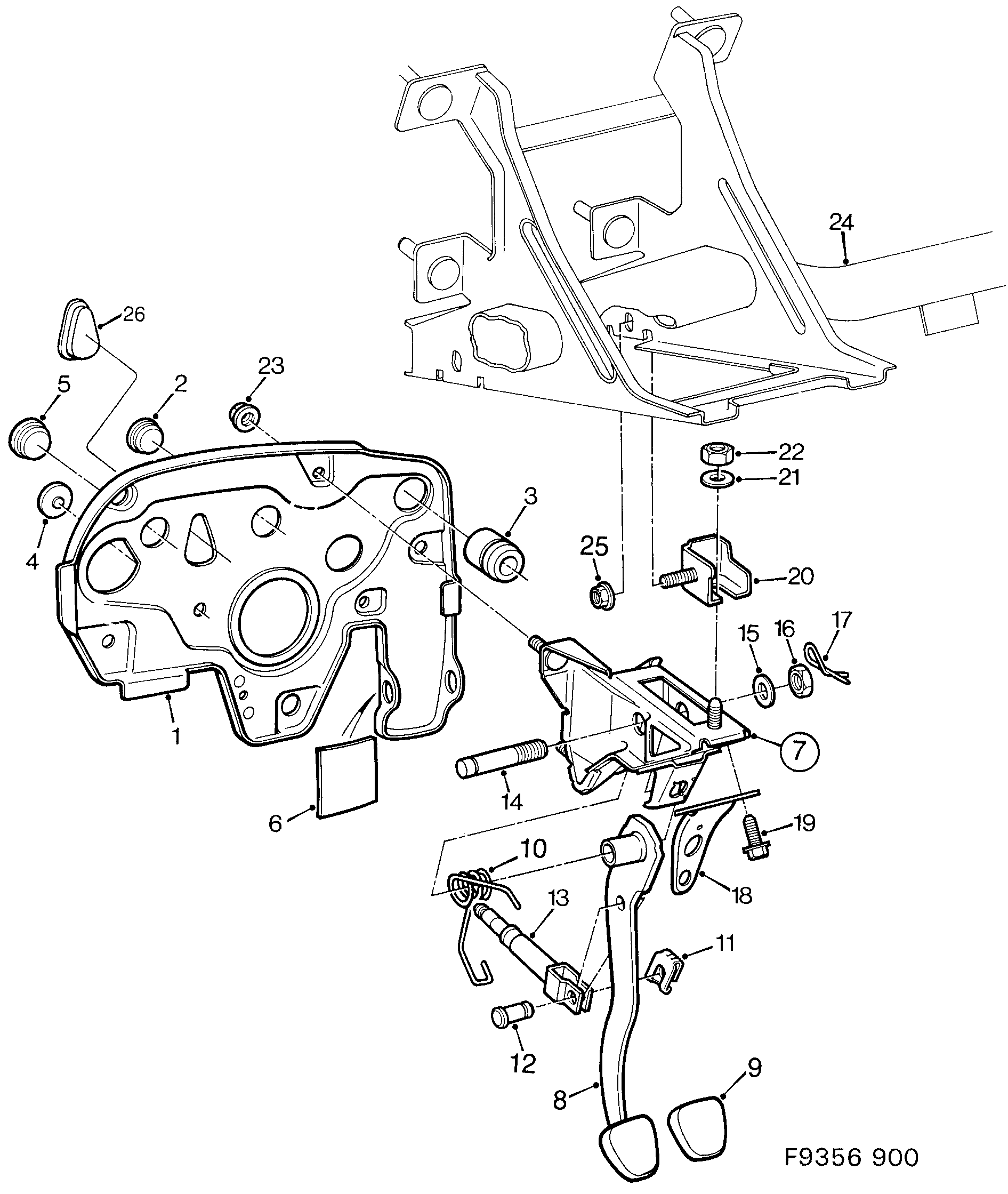

270: Freins - Circuit de frein au pied - Commande du frein au pied
(1994 - 1998)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 4482097 Tôle auvent Usage: 1994-1997, LHD | 1 | |
| 1 | 4647996 Tôle auvent Usage: 1998-1998, LHD | 1 | |
| 1 | 4482089 Tôle auvent Usage: RHD | 1 | |
| 2 | 8575599 Tampon | 1 | |
| 3 | 4245635 90156374 Joint | 1 | |
| 4 | 4345724 Joint | X | |
| 5 | 9268863 Tampon | 1 | |
| 6 | 4242087 Plaque entretoise | 1 | |
| 7 | 4398897 Console Usage: LHD | 1 | |
| 7 | 4398939 Console Usage: LHD | 1 | |
| 7 | 4398905 Console Usage: RHD | 1 | |
| 7 | 4398947 5058805 Console Usage: RHD | 1 | |
| 8 | 4244547 90288481 Pédale frein Usage: LHD | 1 | |
| 8 | 4244570 90288482 Pédale frein Usage: LHD | 1 | |
| 8 | 90288483 Pédale frein Usage: RHD | (42 41 840) | 1 | |
| 8 | 4242020 90538473 Pédale frein Usage: RHD | 1 | |
| 9 | 4241832 90105172 Patin caoutchouc de pédale | 1 | |
| 9 | 4244612 4688594 Patin caoutchouc de pédale | 1 | |
| 10 | 4242103 Ressort rappel | 1 | |
| 11 | 4345443 90278102 Clip | 1 | |
| 12 | 4345435 90222680 Clavette | 1 | |
| 13 | 4244620 90468840 Tige piston Usage: -1994 | 1 | |
| 13 | 4482022 90468840 Tige piston Usage: 1994-1995 | 1 | |
| 13 | 90468840 Tige piston Usage: 1996-1998 | (46 88 610) | 1 | |
| 14 | 4241865 Vis | 1 | |
| 15 | 8073108 Rondelle | 1 | |
| 16 | 4345047 Ecrou | 1 | |
| 17 | 4241881 90373365 Ressort verrouillage | 1 | |
| 18 | 4246591 Console Usage: LHD | 1 | |
| 18 | 4247003 Console Usage: RHD | 1 | |
| 19 | 7985138 Vis | 3 | |
| 20 | 4212148 90193008 Support de pédale | 1 | |
| 21 | 4345344 Rondelle | 1 | |
| 22 | 7965767 55557005 Contre-écrou | 1 | |
| 23 | 4345419 90191908 Ecrou | 4 | |
| 24 | Elément volant direction | ||
| 25 | 7971922 92150143 Ecrou | 1 | |
| 26 | 4838025 Obturateur en caoutchouc Usage: 1998-1998, LHD | 1 |
